  11. WashdownMotor, 10hp, 3525RPM, 230/460VAC

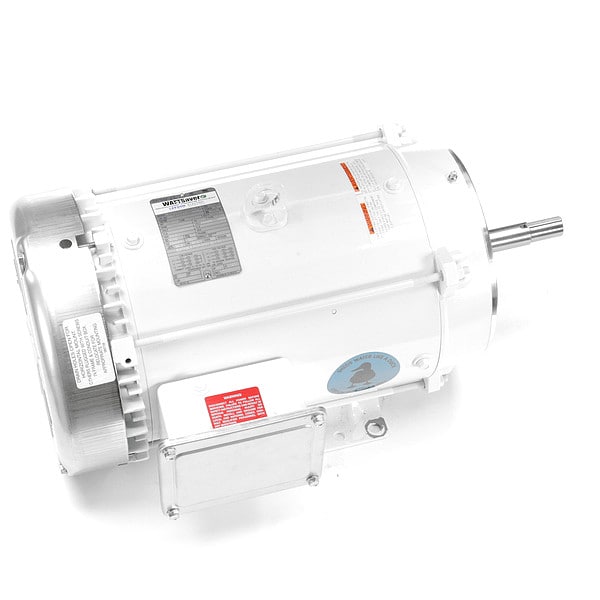

Leeson WashdownMotor, 10hp, 3525RPM, 230/460VAC 141271.00 - main

WashdownMotor, 10hp, 3525RPM, 230/460VAC

  • Mfr # 141271.00

  • Zoro # G806626654

product price: $2,592.33
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
141271.00
Zoro #
G806626654
UPC #
691720052143
Country of Origin
Mexico

Dimensions

Shaft Length
4 1/4 in
Shaft Dia.
1 in
Overall Length
21 3/8 in
Body Dia.
8.81 in
Bolt Circle Dia.
7 1/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
215JM
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
NEMA Design
B
Duty Cycle
Continuous
Ins. Class
F
Voltage Compatibility
230/460
Motor Service Factor
1.15
Standards
BISSC Approved, CE Certified, CSA Certified, UL Listed, USDA Approved
No. of Speeds
1
Nominal Efficiency
90.2 %
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Nameplate RPM
3,525 RPM
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Application
General Purpose
Weight
91 lb
Full Load Amps
23.6/11.8 A
Motor Shaft Rotation
CW/CCW
Hz
60/50 Hz
Motor Mounting Position
Horizontal
Finish
Epoxy-Coated
Usable @ 200V
Usable at 200V
Usable @ 208V
Usable at 208V
Inverter Rating
10:1
Endshield Material
Aluminum
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 3,525 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 23.6/11.8 A, 215JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
