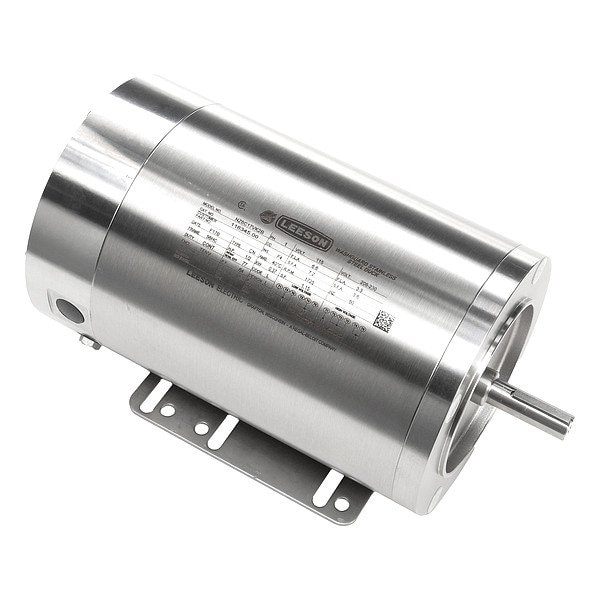

WashdownMotor, 1/2hp, 1725RPM, 115/230VAC
Mfr # 116345.00
Zoro # G111931276
product price: $1,509.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
116345.00
Zoro #
G111931276
UPC #
691720307427
Country of Origin
United States
Dimensions
Overall Length
12 11/16 in
Stud Size
3/8"-16
Body Dia.
6.6 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
10 13/16 in
Description
Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.8/3.4 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design L, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
