  11. Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56HZ Frame
Shop All AC Farm Duty Motors
Leeson

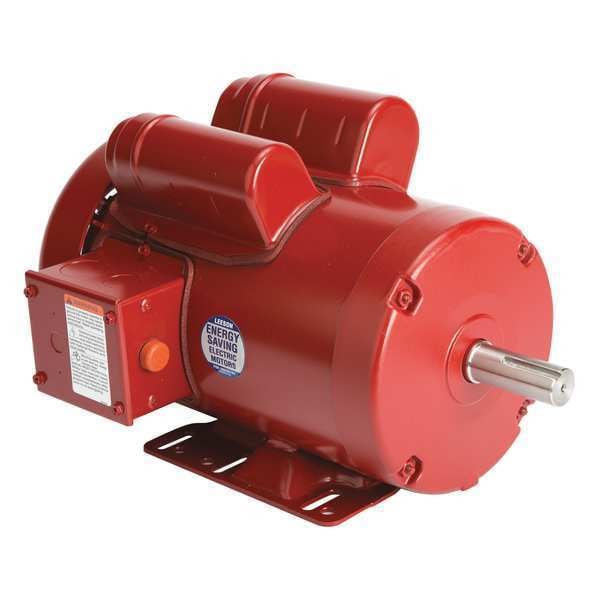

Farm Duty Motor, Capacitor-Start/Run, 1 1/2 HP, 115/208-230V AC, 1,725 Nameplate RPM, 56HZ Frame

product price: $479.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start/Run
  • Phase Single
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 115/208-230V AC
See all product information

Product Information

Dimensions

Overall Length 13 7/16 in
Shaft Length 2 1/4 in
Shaft Dia. 7/8 in
Length Less Shaft 11 3/16 in
Manufacturers Warranty Length 1 yr

Details

Item Farm Duty Motor
Motor Design Capacitor-Start/Run
Phase Single
HP 1 1/2
RPM Range 1,701-1,800
Voltage 115/208-230V AC
Frame 56HZ
Motor Service Factor 1.15
Motor Thermal Protection Manual
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1,725
Motor Application Farm Duty
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Sub Application High Torque
Motor Shaft Design Keyed
Motor Shaft Rotation CW/CCW
Standards CSA (LR2025), UL (E49747)
Item - Farm Duty Motors Farm Duty Motor
Motor Efficiency Group Standard Efficient
Duty Continuous
Finish Enamel
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Bearings Ball
Frame Material Rolled steel
Max. Ambient Temperature 40 Degrees C
Ins. Class F
Hz 60 Hz
Full Load Amps 17.2/8.8-8.6 A
Nominal Efficiency 79 %
Capacitor Required Yes
Max. Ambient Temp. 40 Degrees C
Usable @ 200V No
Usable @ 208V Yes
Weight 42 lb
No. of Speeds 1
Duty Cycle Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.2/8.8-8.6 A, 56HZ Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
