  11. WashdownMotor, 1/2hp, 71,230/460VAC
No Product Image Available

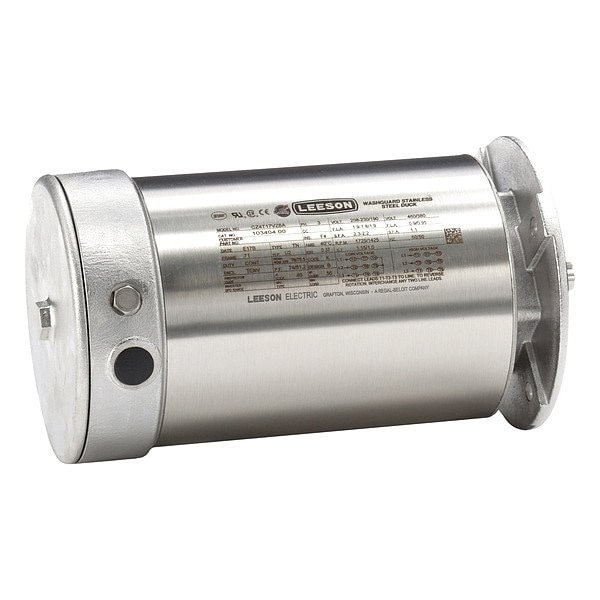

WashdownMotor, 1/2hp, 71,230/460VAC

  • Mfr # 103404.00

  • Zoro # G611931233

product price: $1,422.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
103404.00
Zoro #
G611931233
UPC #
691720989210
Country of Origin
United States

Dimensions

Length Less Shaft
10 7/16 in
Shaft Dia.
9/16 in
Overall Length
11 7/8 in
Stud Size
0.394 in
Body Dia.
6.3 in
Shaft Length
1 3/16 in
Bolt Circle Dia.
5 1/8 in
Manufacturers Warranty Length
Not available

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
71
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Full Load Amps @ 50Hz
0.82 A
Motor Shaft Design
Keyed
HP @ 50Hz
1/2 hp
No. of Speeds
1
Full Load Amps
1.8/0.9 A
Ins. Class
F
Duty Cycle
Continuous
RPM @ 50Hz
1,425 RPM
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
76 %
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Weight
32 lb
Includes
Not available
Hz
60/50 Hz
Motor Mounting Position
Horizontal
Standards
CE, CSA Certified, UL Listed
Service Factor @ 50Hz
1
Usable @ 200V
Not Usable at 200V
Voltage Compatibility
230V AC, 460V AC
Shaft Material
Stainless Steel
Nameplate RPM
1,725 RPM
Endshield Material
Stainless Steel
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Motor Mounting Type
C-Face
Voltage @ 50Hz
190/380V AC
Finish
Epoxy-Coated
Bearing Protection
Not available
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.8/0.9 A, 71 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
