Shop LEESON

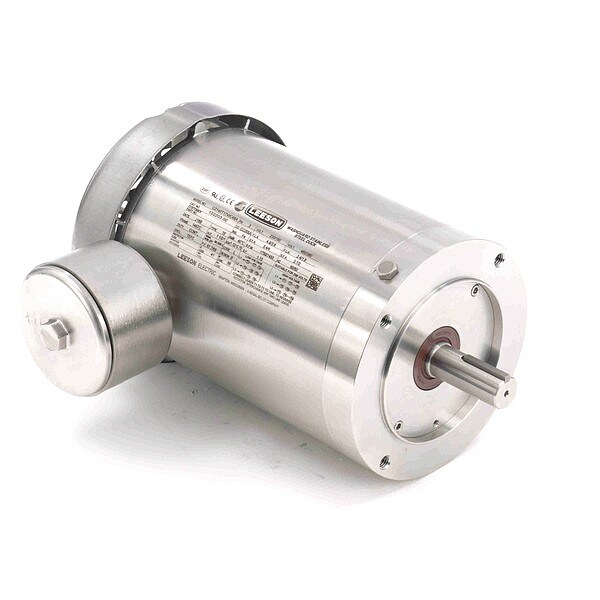

WashdownMotor, 1hp, 1725RPM, 230/460VAC

  • Mfr # 122202.00
  • Zoro # G900722948
product price:
$
1,792.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
122202.00
Zoro #
G900722948
UPC #
691720991404
Country of Origin
United States
Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
143TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Ins. Class
F
Motor Shaft Design
Keyed
Finish
Epoxy-Coated
Endshield Material
Stainless Steel
Motor Mounting Type
C-Face
Duty Cycle
Continuous
No. of Speeds
1
Inverter Rated
Inverter Rated
Nameplate RPM
1,725 RPM
Motor Bearings
Ball
Full Load Amps
3.2/1.6 A
Drain Plugs
(1) in Conduit Box
Motor Shaft Rotation
CW/CCW
Hz
50/60 Hz
Usable @ 208V
Not Usable at 208V
Bearing Protection
Shaft Shields
Standards
CE, CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Weight
44 lb
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Removable Base
Yes
Motor Application
General Purpose
NEMA Design
B
Motor Service Factor
1.2
Nominal Efficiency
85.5 %
Inverter Rating
6:1
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
