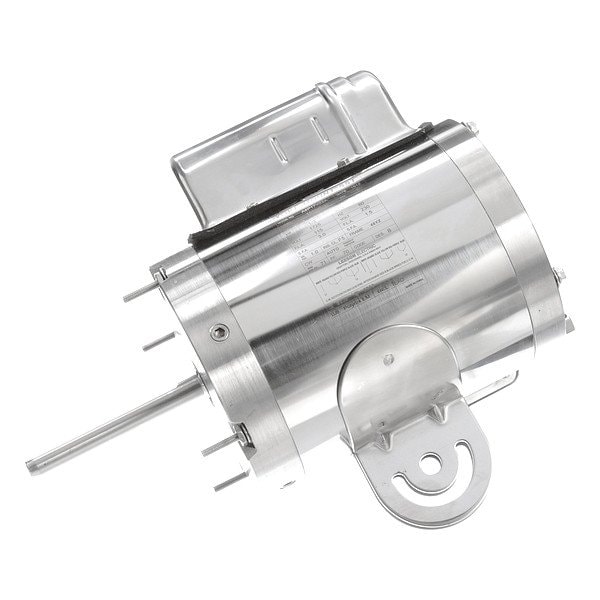

WashdownMotor, 1/3hp, 1755RPM, 115/230VAC
Mfr # 191545.00
Zoro # G811931255
product price:Â $1,077.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48YZ
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
191545.00
Zoro #
G811931255
UPC #
691720052549
Country of Origin
China
Dimensions
Length Less Shaft
7 1/2 in
Shaft Length
4 1/16 in
Bolt Circle Dia.
5 1/8 in
Overall Length
11 9/16 in
Body Dia.
5.5 in
Shaft Dia.
1/2 in
Description
Washdown Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.0/1.5 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design None, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
