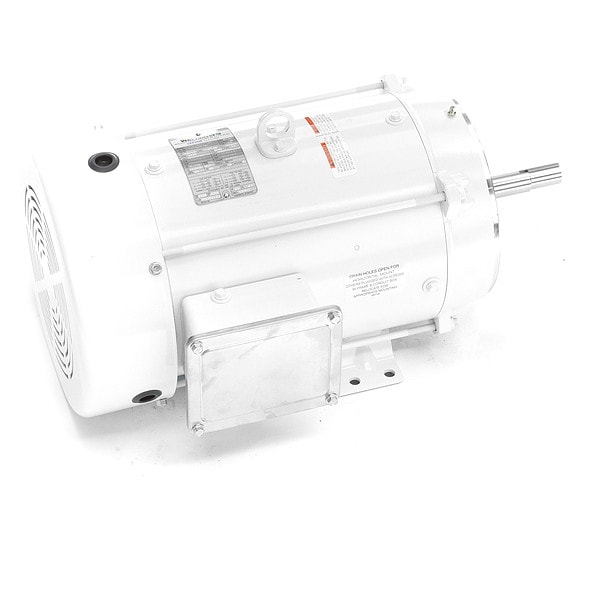

WashdownMotor, 15hp, 3495RPM, 230/460VAC
Mfr # 141358.00
Zoro # G406626634
product price: $2,873.85
/ea
Item requires special delivery charges. A $125.00 per item surcharge will be applied.
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
213JM
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
141358.00
Zoro #
G406626634
UPC #
691720991459
Country of Origin
Mexico
Dimensions
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Body Dia.
8.81 in
Overall Length
21 11/16 in
Bolt Circle Dia.
7 1/4 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,495 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 35.0/17.6 A, 213JM Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
