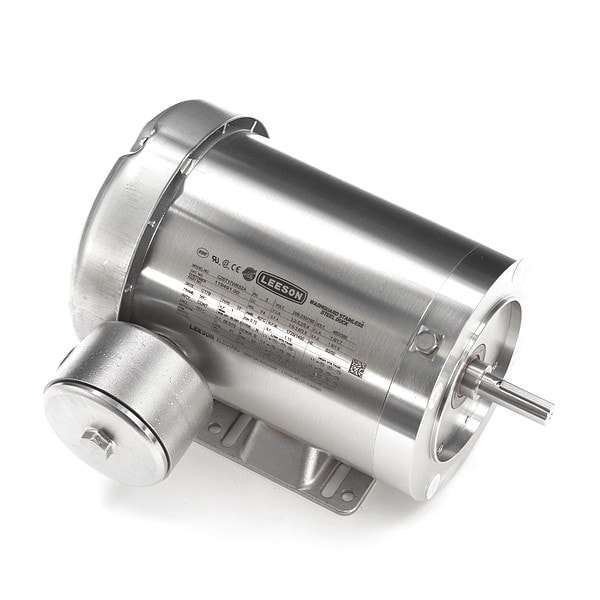

WashdownMotor, 1hp, 1760RPM, 56C, 230/460VAC

  • Mfr # 119491.00

  • Zoro # G700722957

product price:  $1,429.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119491.00
Zoro #
G700722957
UPC #
691720052976
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Overall Length
11 15/16 in
Bolt Circle Dia.
5 7/8 in
Body Dia.
7.3 in
Length Less Shaft
10 in
Wire Rope Length
11 15/16 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
Removable Base
No
Shaft Material
Stainless Steel
Ins. Class
F
Motor Mounting Type
C-Face
Motor Mounting Position
Horizontal
Nominal Efficiency
85.5 %
Hz
60/50 Hz
Inverter Rating
6:1
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Usable at 208V
Motor Shaft Rotation
CW/CCW
Full Load Amps
3.2/1.6 A
Usable @ 200V
Not Usable at 200V
Bearing Protection
Shaft Shields
Nameplate RPM
1,760 RPM
NEMA Design
B
Motor Bearings
Ball
Weight
41 lb
Motor Shaft Design
Keyed
Drain Plugs
(1) in Conduit Box
Inverter Rated
Inverter Rated
Standards
CE, CSA Certified, UL Recognized
Duty Cycle
Continuous
Motor Service Factor
1.2
Finish
Epoxy-Coated
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Endshield Material
Stainless Steel
No. of Speeds
1
Conduit Box Location
Exterior
Motor Application
General Purpose
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
