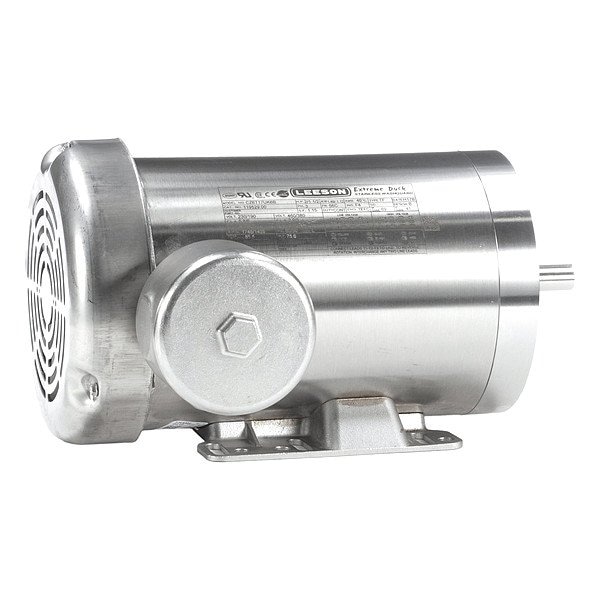

WashdownMotor, 2hp, 1745RPM, 56C, 230/460VAC

  • Mfr # 119529.00

  • Zoro # G111931245

product price:  $2,681.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
119529.00
Zoro #
G111931245
UPC #
691720053461
Country of Origin
United States

Dimensions

Stud Size
3/8"-16
Manufacturers Warranty Length
Not available
Shaft Dia.
5/8 in
Body Dia.
6.6 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in
Length Less Shaft
11 1/8 in
Overall Length
13 3/16 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Finish
No Paint
NEMA Design
B
Inverter Rating
10:1
Motor Bearings
Ball
Voltage Compatibility
230V AC, 460V AC
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Full Load Amps @ 50Hz
2.0 A
Service Factor @ 50Hz
1.15
Motor Application
General Purpose
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Bearing Protection
Not available
Endshield Material
Stainless Steel
Nameplate RPM
1,745 RPM
Voltage @ 50Hz
190/380V AC
RPM @ 50Hz
1,435 RPM
No. of Speeds
1
Shaft Material
Stainless Steel
Full Load Amps
5.8/2.9 A
Nominal Efficiency
86.5 %
Weight
61 lb
Standards
CE, CSA Certified, UL Listed
Includes
Not available
Inverter Rated
Inverter Rated
Motor Mounting Type
C-Face, Rigid Base
Hz
60/50 Hz
HP @ 50Hz
1 1/2 hp
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
