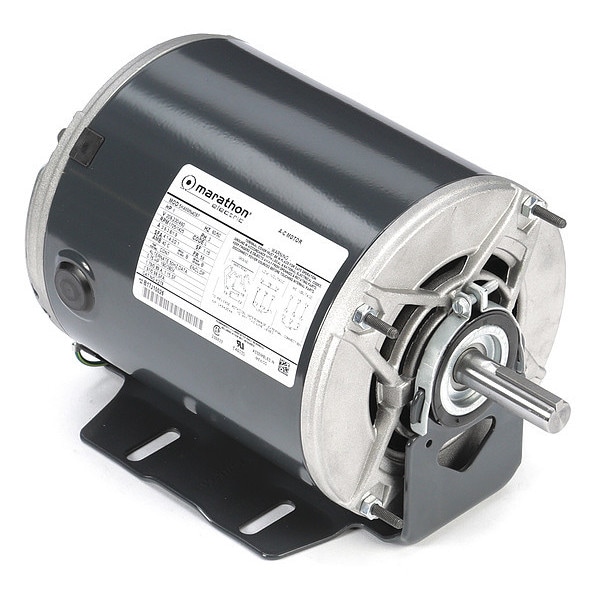

Condenser Fan Motor, 1 HP, 56 Frame, 1 Speed, Open Dripproof, Cradel Base Mount, 208-230/460V AC
Mfr # 5K46MN4087
Zoro # G7342577
product price:Â
$
280.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1
RPM Range
1,701-1,800
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5K46MN4087
- Zoro #
- G7342577
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 5/8 in
- Shaft Length
- 1 7/8 in
- Body Dia.
- 6 7/16 in
- Length Less Shaft
- 8 7/8 in
- Overall Length
- 10 7/8 in
- Bolt Circle Dia.
- 5-15/16"
- Stud Size
- #10-32
- Manufacturers Warranty Length
- 1 yr
- Lead Length
- 5"
- Resilient Ring Dia.
- 2 1/4 in
- Frame Size
- 56
- Shaft Diameter
- 5/8 in
- Resilient Ring Diameter
- 2 1/4 in
- Body Diameter
- 6.4 in
Description
Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.6-3.8/1.9 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
