Shop LEGRAND

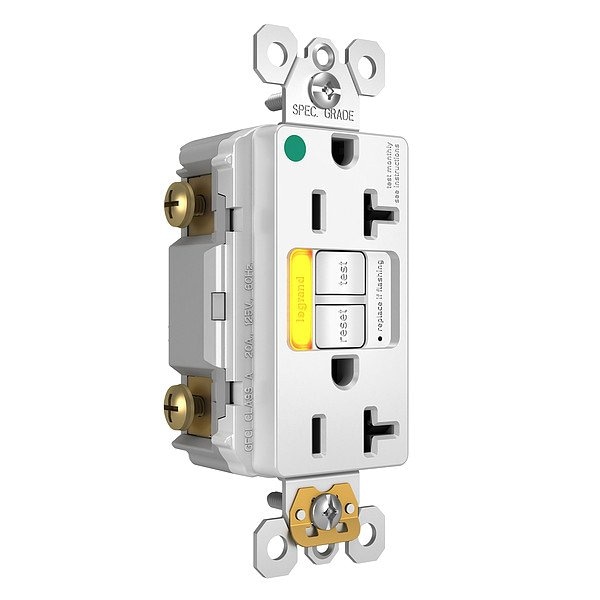

GFCI, 20 A, 125V AC, White, Plastic

  • Mfr # 2097HGTRPIAMBW

  • Zoro # G522784669

product price:
$
64.15
/ea

Key Features

Hub Type
Feed Through
Maximum Wire Size
10 AWG
Number of Poles
2
Self Testing
Yes
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2097HGTRPIAMBW
Zoro #
G522784669
UPC #
785007289961
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Width
0.9 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Overall Depth
1 in

Details

Hub Type
Feed Through
Number of Poles
2
Self Testing
Yes
GFCI
Yes
Grade
Hospital Grade
Shrouded
No
Market
Commercial
Housing Material
Plastic
Number of Gangs
1
NEMA Enclosure Rating
5
Maximum Operating Temperature
66 Degrees C
Current Rating
20 A
Housing Color
White
Cover Type
No Cover
Contact Material
Brass
Resistance Properties
Tamper Resistant
Number of Wires
3
Phase
Single
AFCI
No
Standards
RoHS Compliant
NEMA Receptacle Configuration
5-20R
Item
GFCI
Mount Type
Flush
Flange Type
Non-Flanged
Minimum Operating Temperature
-35 Degrees C
Includes
Wall Plate
UL 94 Flammability Rating
V-2
IP Rating
Not Rated
Features
Auto-Ground Clip Assures a Positive Ground to Metal Box, Conducts an Industry-Leading Automatic Self-Test Every 3 Seconds, Enhanced Tamper-Resistant Automatic Shutter System Allows for Easier Plug Insertion While Inhibiting Young Children or Others from Inserting Objects, Equipped with Patented SafeLock(R) Protection, FSUL Listed (Federal Specification WC596), GFCI Receptacles Make it Easier to Fix Trips with a Reset Button Right on the Device, GFCIs Prevent Line-Load Reversal Due to Inadvertent Miswire, High-Impact-Resistant, Thermoplastic Construction for Superior Strength and Durability, Hospital Grade GFCIs are Subjected to Additional Performance Requirements, Including Reliability, Integrity, Strength, and Durability Tests, If Critical Components are Damaged and Ground-Fault Protection is Lost, Power to the Receptacle is Disconnected, Power-Indicating Amber LED Provides Visual Indication of Power Being Present at the Receptacle, Protects Against Shock Caused by Ground-Fault Occurrences, The Trip Indicator Light Flashes if the Device Fails the Self-Test, Signaling the GFCI is to Be Replaced, There is No Power to the Face or Downstream Receptacles if Wired Incorrectly
Grounding
Grounded
Wiring Method
Back/Side
Number of Wall Plates Included
0
Polarized
No
Receptacle Type
Duplex
Series
Radiant(R)
Number of Outlets
2
Surge Protection
No
For Location
Indoor
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals

Description

GFCI, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards RoHS Compliant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
