  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

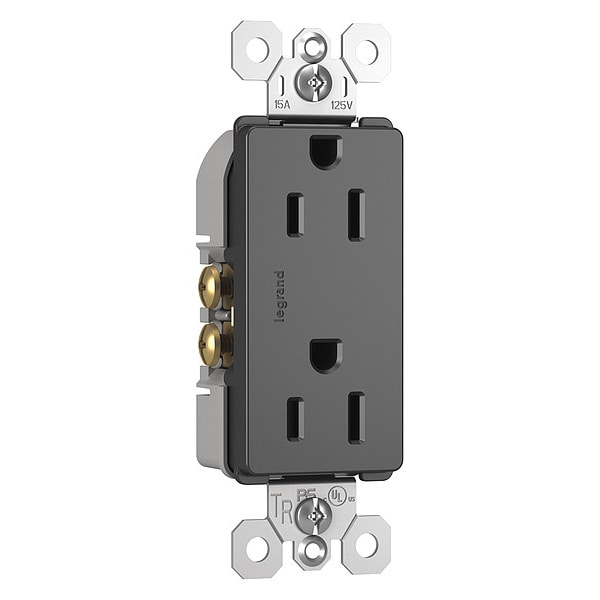

Legrand Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 885TRBK - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 885TRBK

  • Zoro # G8038835

product price: $6.19
/ea
Sold in multiples of 10 for $61.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
885TRBK
Zoro #
G8038835
UPC #
-
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.2 in
Face Plate Height
2.6 in
Overall Depth
1 in
Height (U S)
3.812"
Depth (U S)
1"
Width (U S)
1.29"

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA C22.2 No.42, UL 498, cULus Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Material
Thermoplastic
Wiring Method - Plugs and Receptacles
Push and Side
Weather Resistant - Plugs and Receptacles
No
Application Environment
General Purpose
Mounting Type - Plugs and Receptacles
Flush
Includes
Grounding Clip, Mounting Hardware
Power Indicator
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Surge Suppression
No
Connection Orientation
Straight
Housing Material
Thermoplastic
GFCI
No
AFCI
No
Market
Commercial, Residential
Contact Material
Brass
Grade
General Use
Surge Protection
No
Includes Mounting Hardware
Yes
CSA Standard
Yes
UL Listing No
UL498
CSA Listing Info
C22.2 No.42
UL Standard
Yes
cULus
Yes

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Plastic, Mount Type Recessed, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus Listed, UL 498, Voltage Rating 125V AC
