Shop LEGRAND

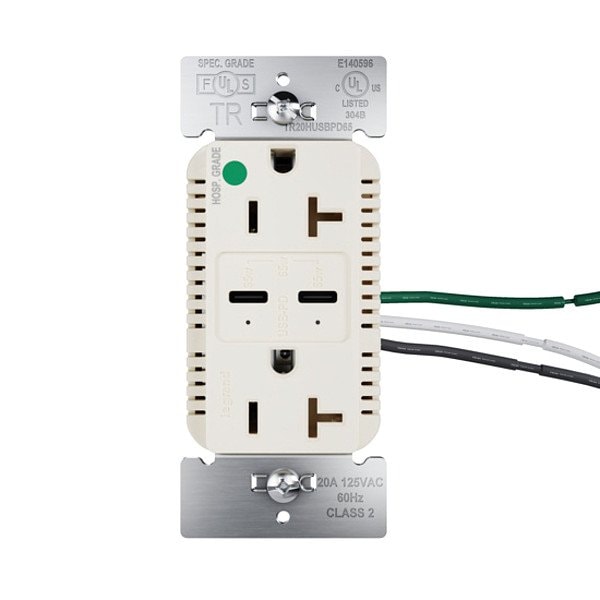

USB Receptacle, 20 A, Almond, Nylon

  • Mfr # TR20HUSBPD65LA

  • Zoro # G022785104

product price:
$
131.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
125V AC
Maximum Operating Temperature
60 Degrees C
Mount Hole Center-to-Center Height
3.28 in
Maximum Charging Power per Port
65 W
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TR20HUSBPD65LA
Zoro #
G022785104
UPC #
785007461138
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.28 in
Overall Depth
1.52 in
Maximum Wire Size
12 AWG

Details

Voltage Rating
125V AC
Maximum Operating Temperature
60 Degrees C
Maximum Charging Power per Port
65 W
Number of Poles
2
Number of Wires
3
GFCI
No
Number of Outlets
2
Wire Connection Type
Wire Leads
Wiring Method
Back
Mount Type
Flush
Grounding
Grounded
Current Rating
20 A
Number of Wall Plates Included
0
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Contact Material
Brass
Phase
Single
Surge Protection
No
Standards
CSA, cULus Listed, NEC, NFPA 70, RoHS Compliant, UL Listed
NEMA Receptacle Configuration
5-20R
Item
USB Receptacle
UL 94 Flammability Rating
V-2
Receptacle Type
Duplex
USB Connection Type
C
Power Indicating Light
Yes
Housing Color
Light Almond
Resistance Properties
Tamper Resistant
Grade
Hospital Grade

Description

USB Receptacle, Current Rating 20 A, Housing Color Light Almond, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type C, Voltage Rating 125V AC, Wire Connection Type Wire Leads, Wiring Method Back, GFCI No, Grade Hospital Grade, Grounding Grounded, Horsepower Rating Not Applicable, Housing Material Nylon, IP Rating Not Applicable, Maximum Wire Size 12 AWG
