Shop LEGRAND

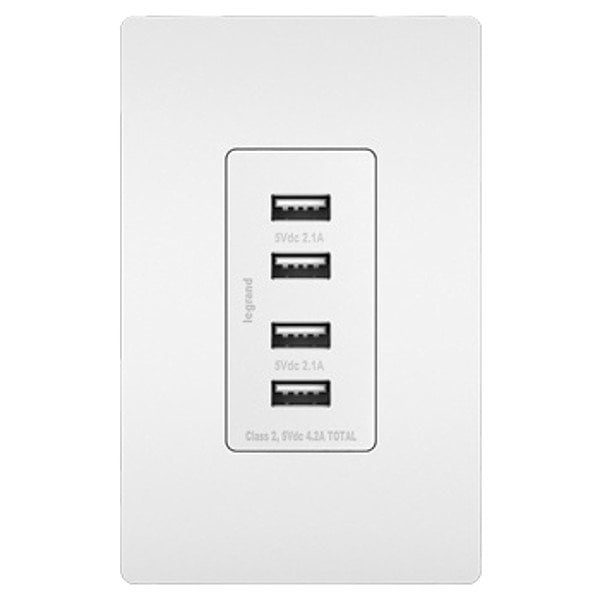

USBReceptacle, 15A, White, Polycarbonate

  • Mfr # TM8USB4WCC6

  • Zoro # G022784480

product price:
$
60.49
/ea

Key Features

Contact Material
Brass
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Mount Type
Flush
Housing Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TM8USB4WCC6
Zoro #
G022784480
UPC #
785007028737
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.28 in
Minimum Wire Size
14 AWG
Overall Depth
1.31 in
Maximum Wire Size
10 AWG

Details

Contact Material
Brass
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Mount Type
Flush
Housing Color
White
Voltage Rating
125V AC
Number of Outlets
0
Standards
cULus Listed
UL 94 Flammability Rating
V-2
Item
USB Receptacle
Wire Connection Type
Screw Terminals
Number of Poles
2
Grade
General Use
Resistance Properties
Impact Resistant
Wiring Method
Back/Side
Number of Wall Plates Included
0
USB Connection Type
A
Housing Material
Polycarbonate
GFCI
No
Number of Wires
3
Phase
Single
Surge Protection
No
USB Standard
2.0, 3.0
Series
radiant(R)
Grounding
Grounded
Market
Residential
Current Rating
15 A

Description

USB Receptacle, Current Rating 15 A, Housing Color White, Number of Outlets 0, Number of USB Ports 4, Number of Wires 3, Receptacle Type Not Applicable, Resistance Properties Impact Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, GFCI No, Grade General Use, Grounding Grounded, Horsepower Rating Not Applicable, Housing Material Polycarbonate, IP Rating Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG
