Shop LEGRIS

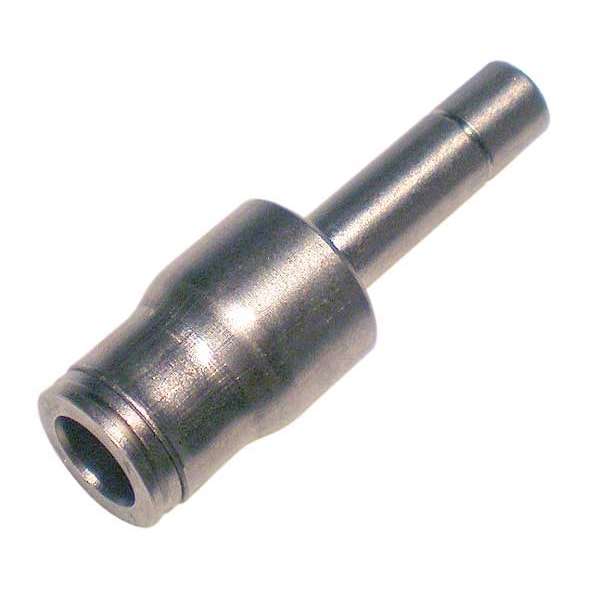

Push-Fit Adapter Fitting, 1/4 in Tube Size, Brass, Silver

  • Mfr # 3667 06 56

  • Zoro # G0710141

product price:  $10.25
/ea

Key Features

Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Tube
Tube Size
1/4 in
Stem OD
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3667 06 56
Zoro #
G0710141
UPC #
820099283777
Country of Origin
Spain

Dimensions

Tube Size
1/4 in
Overall Length
38 mm
Fitting Side A Tube Outer Diameter
6 mm
Fitting Side B Tube Outer Diameter
1/4 in
Fitting Side 1 Tube Outer Diameter
6 mm
Fitting Side 2 Tube Outer Diameter
1/4 in

Details

Item
Push-Fit Adapter Fitting
Tube Fitting Material
Nickel Plated Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Tube
Stem OD
1/4 in
Max. Pressure
435 psi
Specific Pipe Fitting Shape
Adapter
Pipe Fitting Connection Type
Tube
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Adapter
Gasket Material
FKM
Temp. Range
-4 Degrees to 302 Degrees F
Application
Lubrication
System of Measurement
Imperial/Metric
Color
Silver
Standards
2011/65/EC, ASTM B733-04, 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, 1907/2006 REACH, 1935/2004/EC, 21 CFR (FDA Approved), UL94 V-0, USDA NSF H1
Fitting Side A Connection Type
Push-to-Connect
Fitting Material
Brass
Fitting Side B Connection Type
Push-to-Connect
Compatible Tube Material
Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel
Maximum Operating Temperature
302 Degrees F
Release Ring Material
FKM
Finish/Coating
Nickel Plated
Maximum Operating Pressure
435 psi
Compatible Tube Hardness
95 Shore A
Vacuum Rating
28 inHg
Minimum Operating Temperature
13 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Resistance Properties
Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant
Fitting Shape
Straight
Fitting Side 2 Connection Type
Push-to-Connect
Series
Legris
Operating Pressure - Maximum
435 psi
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
13 Degrees F
For Media Type
Food, Detergents, Non-Potable Water, Oils, Gases
Operating Temperature - Maximum
302 Degrees F
Connector Type
Adapter
Finish
Nickel-Plated

Description

Push-Fit Adapter Fitting, Application Lubrication, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 6 mm, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 435 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 38 mm, Specific Fitting Shape Straight Adapter

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
