Shop LEGRIS

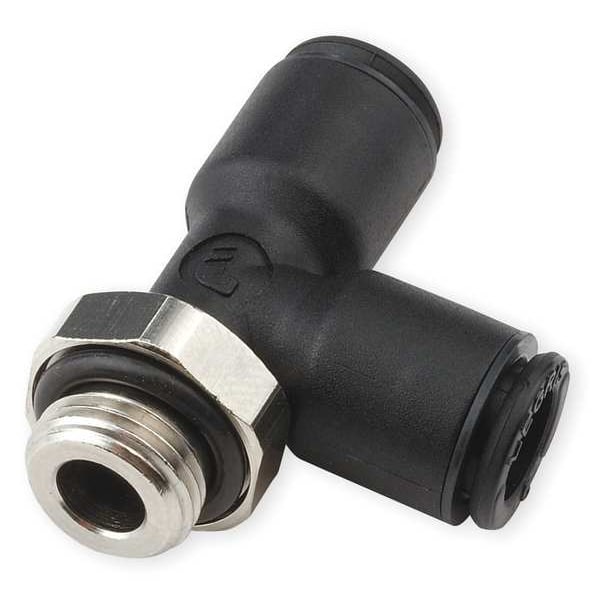

Push-Fit Tee Fitting, 16mm Tube Size, Fiberglass-Reinforced Nylon, Black

  • Mfr # 3193 16 21

  • Zoro # G4406184

product price:
$
46.45
/ea

Key Features

Specific Fitting Shape
Adapter Tee
Tube Size
16mm
Pipe Size - Pipe Fitting
1/2 in
Max. Pressure
290 psi
Connection Type
Push-to-Connect x Push-to-Connect x MBSPP
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3193 16 21
Zoro #
G4406184
UPC #
820099997117
Country of Origin
France
Item
Push-Fit Tee Fitting
Specific Fitting Shape
Adapter Tee
Max. Pressure
290 psi
Connection Type
Push-to-Connect x Push-to-Connect x MBSPP
Temp. Range
-4 Degrees to 175 Degrees F
Body Material
Glass Filled Nylon and Nickel Plated Brass
Fittings Sub-Category
Tees
Color
Black
Basic Material
Plastic/Metal Combination
Application
Air, Cutting Fluids, Inert Gases
Standards
1907/2006 (REACH), 2011/65/EC, 2002/95/EC, 97/23/EC (PED), ISO 14743
System of Measurement
Imperial/Metric
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Minimum Operating Temperature
4 Degrees F
Fitting Side B Connection Type
Push-to-Connect
Fitting Side A Connection Type
Push-to-Connect
Fitting Material
Fiberglass-Reinforced Nylon
Fitting Side C Connection Type
MBSPP
Release Ring Material
Nylon
Maximum Operating Pressure
290 psi
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
Release Type
Button
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Maximum Operating Temperature
175 Degrees F
Vacuum Rating
28 inHg
Fitting Shape
Tee
Operating Temperature - Minimum
-4 Degrees F
Connector Type
Adapter
Fitting Side 1 Connection Type
Tube
For Media Type
Compressed Air, Coolants, Gases
Fitting Side 3 Connection Type
MBSPP
Fitting Side 2 Connection Type
Tube
Operating Pressure - Maximum
290 psi
Fitting Features
Rigid
Operating Temperature - Maximum
175 Degrees F

Description

Push-Fit Tee Fitting, Application Air, Cutting Fluids, Inert Gases, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type MBSPP, Material Grade Not Applicable, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Fitting Side C Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 16 mm, Fitting Side B Tube Outer Diameter 16 mm, Fitting Material Fiberglass-Reinforced Nylon
