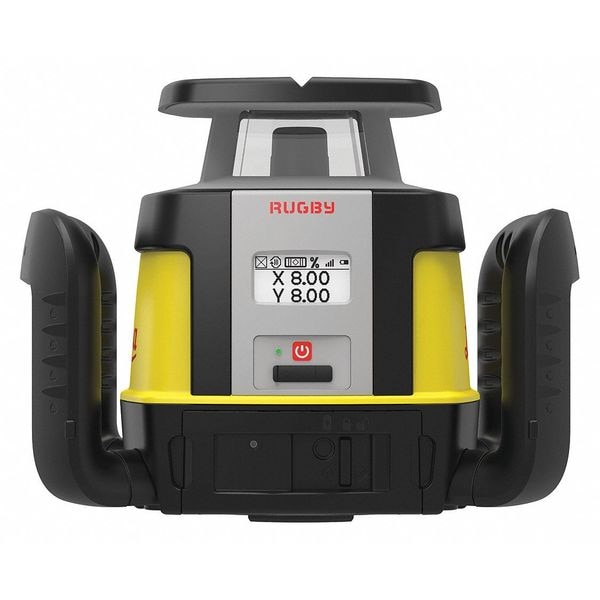

Leica Rugby Rotary Laser, Exterior, Horizontal Rugby CLH with CLX400 - main

Rotary Laser, Exterior, Horizontal

  • Mfr # Rugby CLH with CLX400

  • Zoro # G9462877

product price: $3,389.99
/ea
Free Shipping & Returns

Key Features

Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Rugby CLH with CLX400
Zoro #
G9462877
UPC #
-
Country of Origin
China

Dimensions

Thread Size
5/8"-11
Width
11 45/64 in
Height
9 7/64 in
Length
8 5/16 in
Overall Height
9 1/8 in
Tripod Thread Size
5/8"-11
Overall Depth
8 5/16 in
Overall Width
11 11/16 in

Details

Item
Rotary Laser
Laser Usage Environment
Exterior
Laser Projection
Horizontal
Leveling Type
Electronic Self-Leveling
Number of Beams
1
Number of Dots
0
Number of Lines
0
Laser Color
Red
Range w/o Detector
100 ft
Laser Class
Class 1
Number of Level Vials
0
Range w/Detector
4,430 ft
Grade Capability
Dual
Total Number of Vials
0
Power Source
Li-Ion Rechargeable Battery Pack
Plumb Down
No
IP Rating
IP68
Plumb Up
No
Number of Scanning Modes
2
Number of 45 Degree Vials
0
Preset Angle
None
Auto Leveling Range
+/-6 Degrees
Visual/Audible Indicators
Yes
Auto Shutoff
Yes
Number of Plumb Vials
0
Accuracy
+/-1/16 in @ 100 ft
Includes
Case, Cable
Slope
+/- 8 Degrees
Rotating Speed
20 RPM
Features
Concrete and Formwork Levelling, Height Checking, Land Levelling
Battery Type
Li-Ion
Material
Plastic
Working Range without Detector - Maximum
100 ft
Working Range with Detector - Maximum
4,430 ft
Plumb Direction
Plumb Up
Preset Angles
180 Degrees
Operating Temperature - Maximum
122 Degrees F
Bluetooth
Not Bluetooth Compatible
Number of 45 Vials
0
Laser Beam Color
Red
Standards
ISO 9001
Mount Type
Thumb Screw
Includes Batteries
Batteries Included
Outdoor Range - Maximum
4,429 ft
Automatic Shutoff
Yes
Weight
8.3 lb
Indoor Range - Maximum
4,429 ft
Self-Leveling Range
+/-6 Degrees
Operating Temperature - Minimum
-4 Degrees F
Level Indicators
Audible, Visual
Number of Planes
0
Laser Output
0.6 mW / 3.5 mW Pulse duration (effective) 500 ms / 1.4 ms, 1
Use Location
Outdoor

Description

This Leica Rugby CLH with CLX400 Rotary Laser is a must-have for anyone who wants to do accurate and precise leveling. It is also great for interior and exterior work. The exterior rotary laser has a height of 9 7/64 in., length of 8 5/16 in. and width of 11 45/64 in.. With a red laser, this product has an accuracy of +/-1/16 in at 98 ft.. Powered by a Li-Ion rechargeable battery pack, the rotary laser can rotate at speeds between 10, 15 or 20 RPM. Designed with automatic self-leveling capabilities, it provides ease when leveling surfaces. If you're looking for a high quality and accurate rotary laser level that's designed to last, then the Leica Rugby CLH with CLX400 Rotary Laser is your solution.
