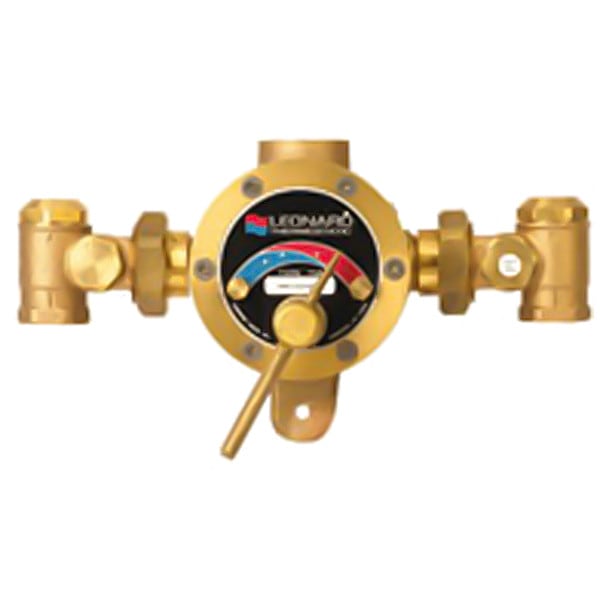

Leonard Valve Checkstop Valve, 1 in Inlet TM-80-AT-LF-RF - main

Checkstop Valve, 1 in Inlet

  • Mfr # TM-80-AT-LF-RF

  • Zoro # G308538875

product price: $1,533.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 in
Flow Rate
13 to 80 gpm
Compliance
Lead Free
Outlet Size
1 1/4 in
Overall Height
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TM-80-AT-LF-RF
Zoro #
G308538875
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1 in
Outlet Size
1 1/4 in
Overall Height
8 in
Overall Length
12 in
Inlet Connection Size - Hot
1 in
Outlet Connection Size
1 1/4 in
Inlet Connection Size - Cold
1 in

Details

Item
Thermostatic Mixing Valve
Flow Rate
13 to 80 gpm
Compliance
Lead Free
For Use With
Low Temperature and Industrial Application
Temp. Range
42 Degrees to 200 Degrees F
Body Material
Bronze
Includes
Check-stops
Max. Pressure
125 psi
Standards
Lead Free
Valve Type
Thermostatic
Inlet Temperature - Maximum Hot
200 Degrees F
Outlet Connection Type
NPT
Operating Pressure - Maximum
125 psi
Seal Material
NBR
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Minimum Outlet
65 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
For Media
Water
Operating Temperature - Maximum Outlet
180 Degrees F
Operating Pressure - Minimum
30 psi
Inlet Temperature - Maximum Cold
70 Degrees F

Description

Thermostatic Mixing Valve, Body Material Bronze, Flow Rate 13 to 80 gpm, Inlet Size 1 in, Outlet Size 1 1/4 in, Temp. Range 42 Degrees to 200 Degrees F, Max. Pressure 125 psi, Overall Height 8 in, For Use With Low Temperature and Industrial Application, Includes Check-stops, Compliance Lead Free
