Leonard Valve

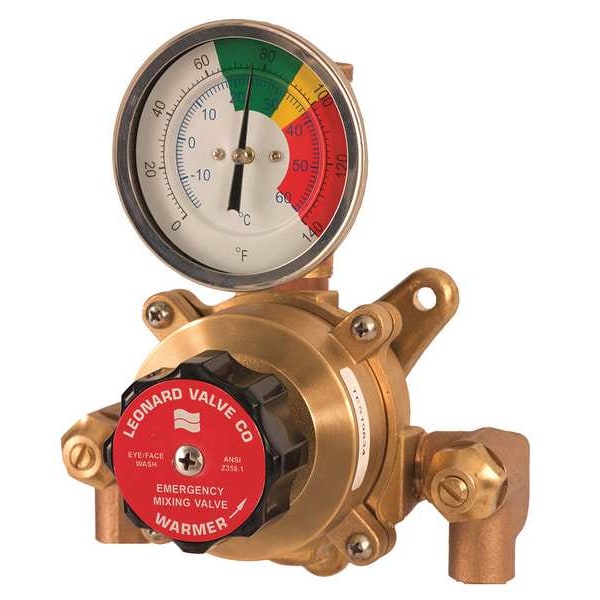

Emergency Mixing Valve System

product price: $548.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Bronze
  • Flow Rate 2 to 9 gpm
  • Inlet Type Sweat
  • Outlet Type Threaded
  • Inlet Size 1/2 in
See all product information

Product Information

Dimensions

Inlet Size 1/2 in
Outlet Size 1/2 in
Height 7 in
Width 7 in
Depth 5 in
Overall Height 8 in
Overall Width 6 in
Diameter 1/2 in
Outlet Pipe Size 1/2 in
Inlet Pipe Size 1/2 in

Details

Item Emergency Mixing Valve
Body Material Bronze
Flow Rate 2 to 9 gpm
Inlet Type Sweat
Outlet Type Threaded
Temp. Range 60 Degrees to 90 Degrees F
Max. Pressure 125 psi
Standards ANSI Z358.1, ASSE 1071, CSA Certified
Inlet Temperature (Cold) 34 Degrees F
For Use With Eyewash
Compliance ASSE 1071, Lead Free
Inlet Temperature (Hot) 90 Degrees F
Includes Mounting Plate and Screws
Material Brass, Bronze, Stainless Steel
Features Angle Checkstops on Inlets, Dial Thermometer (Range 0 to 140 Degrees F, -10 to 60 Degrees C), Integral Wall Support, Rough Bronze Finish

Description

Emergency Mixing Valve, Depth 5 in, Height 7 in, Width 7 in, Features Angle Checkstops on Inlets, Dial Thermometer (Range 0 to 140 Degrees F, -10 to 60 Degrees C), Integral Wall Support, Rough Bronze Finish, For Use With Eyewash, Includes Mounting Plate and Screws, Inlet Pipe Size 1/2 in, Material Brass, Bronze, Stainless Steel, Outlet Pipe Size 1/2 in, Standards ANSI Z358.1, ASSE 1071, CSA Certified

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
