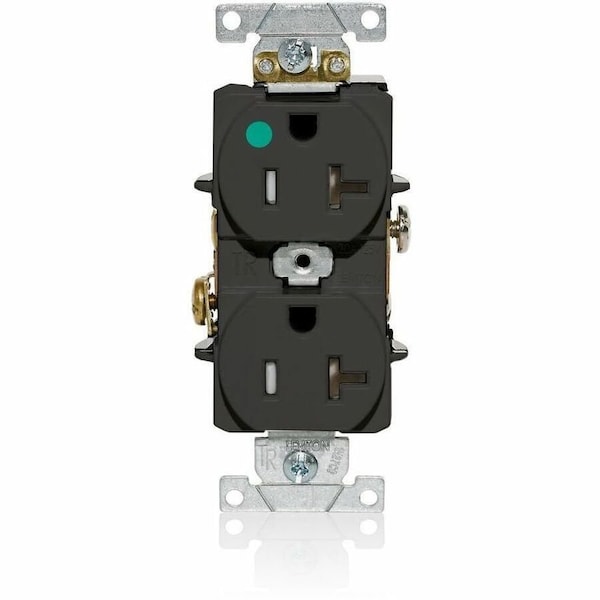

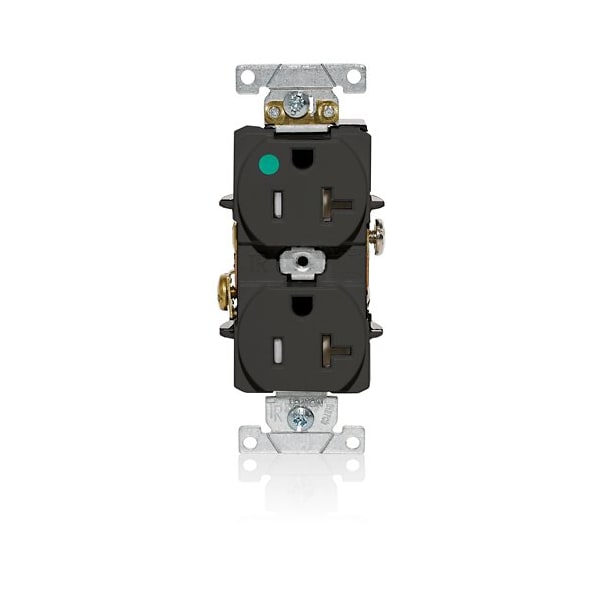

Duplex Outlet, Black 20A, 125V, TR
Mfr # T8300-E
Zoro # G022982152
product price:Â
$
15.49
/ea
Key Features
Features
Smooth Face
Wiring Method
Back/Side
Grounding
Grounded
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- T8300-E
- Zoro #
- G022982152
- UPC #
- 078477896266
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 14 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
- Overall Depth
- 1.2 in
- Maximum Wire Size
- 10 AWG
- Face Plate Height
- 2.8 in
- Face Plate Width
- 1.4 in
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Black, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
