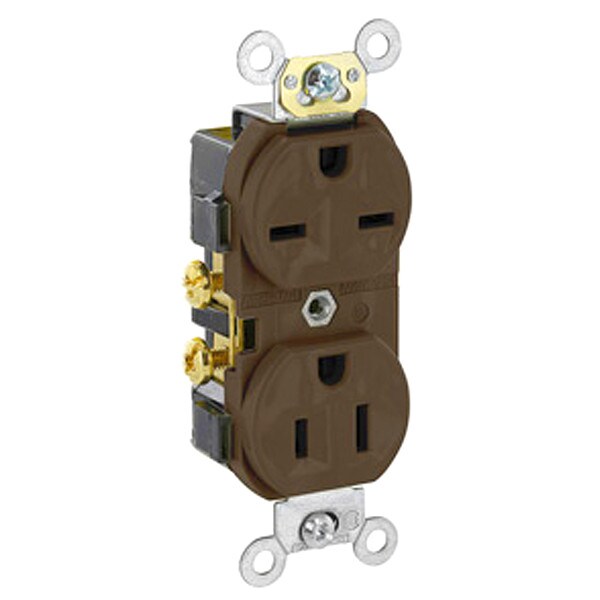

Leviton Straight Blade Receptacle, 5-15R, 6-15R, 15 A, 125/250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5031 - main
Shop LEVITON

Straight Blade Receptacle, 5-15R, 6-15R, 15 A, 125/250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5031

  • Zoro # G304256049

product price:  $9.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R, 6-15R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5031
Zoro #
G304256049
UPC #
07847720790
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R, 6-15R
Current Rating
15 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R_6-15R
Wiring Method - Plugs and Receptacles
Side
Special Features
Dual Voltage, Indented Face
Sub-Category
Duplex Receptacles
Material
Nylon (Body and Face)
HP
1/2 hp, 1 1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
Cover Type
No Cover
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
GFCI
No
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Connection Orientation
Straight
Grade
Federal Specification
Number of Outlets
2
Polarized
Yes
Horsepower Rating
1 1/2 hp
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Market
Commercial
Includes
Strap Material
Flammability
Rated V-2 per UL 94
CSA C22.2 No. 42
File 152105
Wire
3
Termination
Side Wire
Feature 3
Dual Voltage
Body Material
Nylon
At Rated Voltage
1/2 HP 125V / 1-1/2 HP 250V
Clamp Nuts
Zinc-Plated Steel
Strap Material
Zinc-Plated Steel
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Line Contacts
Brass Triple-Wipe .031 Thick
Grounding Screw
Brass 8-32
Feature 4
Indented Face
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Device Type
Duplex Receptacle Outlet
Pole
2
Dielectric Voltage
Withstands 2000V per UL498
Current Limiting
Full Rated Current
Face Material
Nylon
ANSI
C-73
UL498
File E13399
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-16 in-lbs
Terminal Screws
Brass 10-32
Ground Clips
Brass-Plated

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
