Shop LEVITON

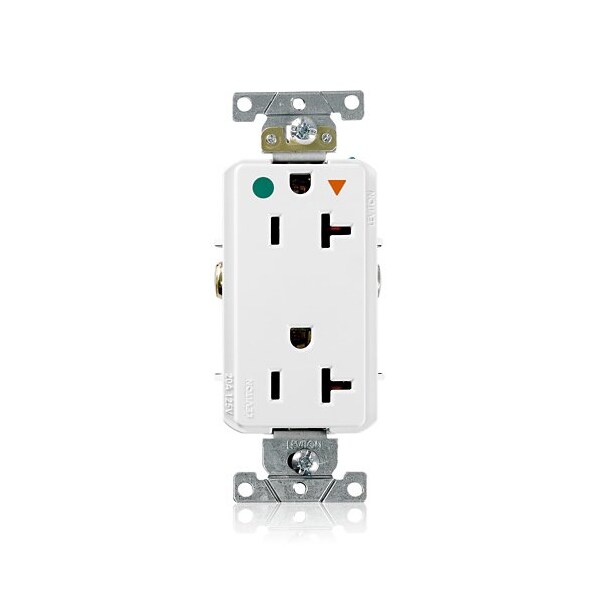

Duplex Outlet, Iso Grd, White, 20A, 125V

  • Mfr # D8300-IGW
  • Zoro # G022982060

product price:
$
35.39
/ea

Key Features

NEMA Receptacle Configuration
5-20R
For Environment
Food and Beverage, Oily/Greasy
Horsepower Rating
1 hp
Receptacle Type
Duplex
Housing Color
White
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D8300-IGW
Zoro #
G022982060
UPC #
078477675274
Country of Origin
Mexico
NEMA Receptacle Configuration
5-20R
For Environment
Food and Beverage, Oily/Greasy
Horsepower Rating
1 hp
Receptacle Type
Duplex
Housing Color
White
Housing Material
PBT Polyester
Number of Outlets
2
Voltage Rating
125V AC
Number of Wires
3
Market
Commercial
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees C
Features
Smooth Face
Item
Isolated Ground Duplex Receptacle Outlet
Grade
Hospital Grade
Connection Orientation
Straight
Standards
CSA, FULS Marking, UL
Grounding
Grounded
Wiring Method
Back/Side
Number of Poles
2
Wire Connection Type
Screw Terminals
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 Degrees C

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Fits Chest Size
Smooth Face

Description

Isolated Ground Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
