Shop LEVITON

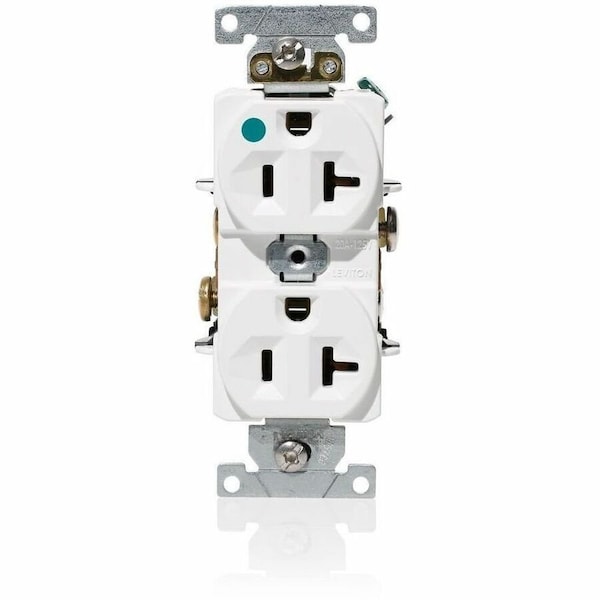

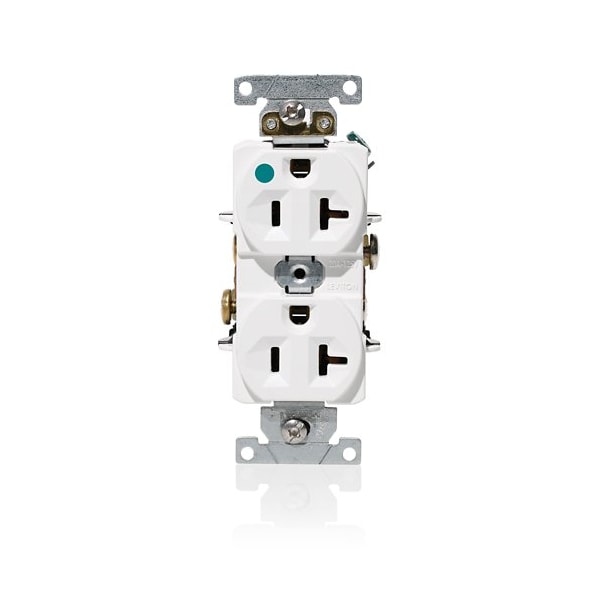

Duplex Outlet, White 20A 125V

  • Mfr # C8300-W
  • Zoro # G922982313
product price:
$
22.19
/ea

Key Features

Number of Outlets
2
Number of Poles
2
Voltage Rating
125V AC
Face Plate Height
2.8 in
Standards
CSA, FULS Marking, UL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C8300-W
Zoro #
G922982313
UPC #
078477675182
Country of Origin
Mexico
Number of Outlets
2
Number of Poles
2
Voltage Rating
125V AC
Standards
CSA, FULS Marking, UL
Market
Commercial
Number of Wires
3
NEMA Receptacle Configuration
5-20R
Maximum Operating Temperature
75 Degrees C
Contact Material
Phosphor Bronze
Receptacle Type
Duplex
Horsepower Rating
1 hp
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees C
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-0
For Environment
Food and Beverage, Oily/Greasy
Features
Indented Face
Wiring Method
Back/Side
Grade
Hospital Grade
Item
Duplex Receptacle Outlet
Current Rating
20 A
Housing Color
White
Grounding
Grounded
Housing Material
PBT Polyester

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color White, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
