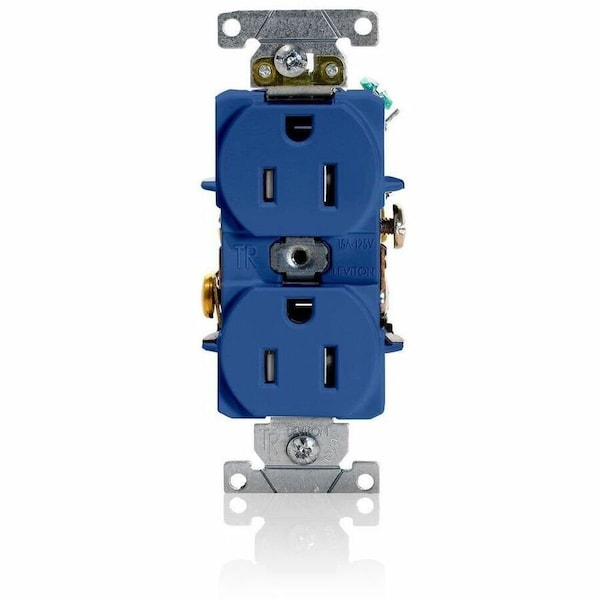

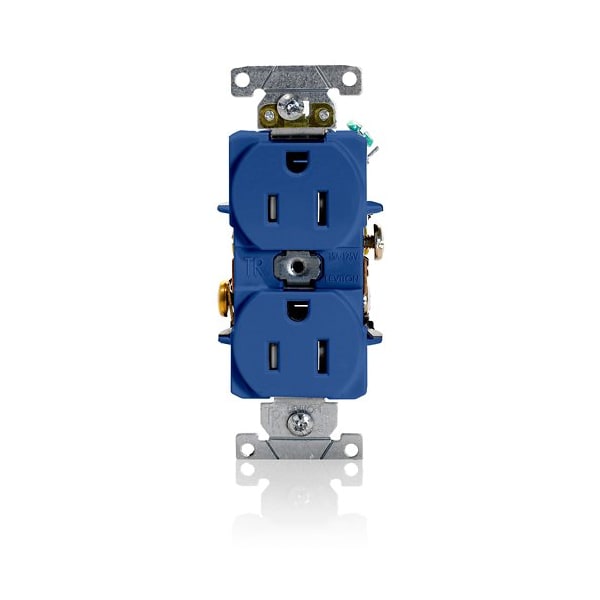

Duplex Receptacle Outlet, 15A, Blue, 125V
- Mfr # T5262-BU
- Zoro # G222982129
product price:Â
$
17.75
/ea
Key Features
Horsepower Rating
1/2 hp
For Environment
Food and Beverage, Oily/Greasy
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-0
Wire Connection Type
Screw Terminals
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- T5262-BU
- Zoro #
- G222982129
- UPC #
- 078477895351
- Country of Origin
- Mexico
- Horsepower Rating
- 1/2 hp
- For Environment
- Food and Beverage, Oily/Greasy
- Contact Material
- Phosphor Bronze
- UL 94 Flammability Rating
- V-0
- Wire Connection Type
- Screw Terminals
- Housing Material
- PBT Polyester
- Maximum Operating Temperature
- 75 Degrees C
- Number of Outlets
- 2
- Number of Poles
- 2
- Wiring Method
- Back/Side
- Minimum Operating Temperature
- -40 Degrees C
- Market
- Industrial
- Receptacle Type
- Duplex
- Grounding
- Grounded
- Item
- Duplex Receptacle Outlet
- Number of Wires
- 3
- Housing Color
- Blue
- Resistance Properties
- Tamper Resistant
- NEMA Receptacle Configuration
- 5-15R
- Connection Orientation
- Straight
- Standards
- CSA, FULS Marking, UL
- Current Rating
- 15 A
- Voltage Rating
- 125V AC
- Features
- Smooth Face
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Blue, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-0
