Shop LEVITON

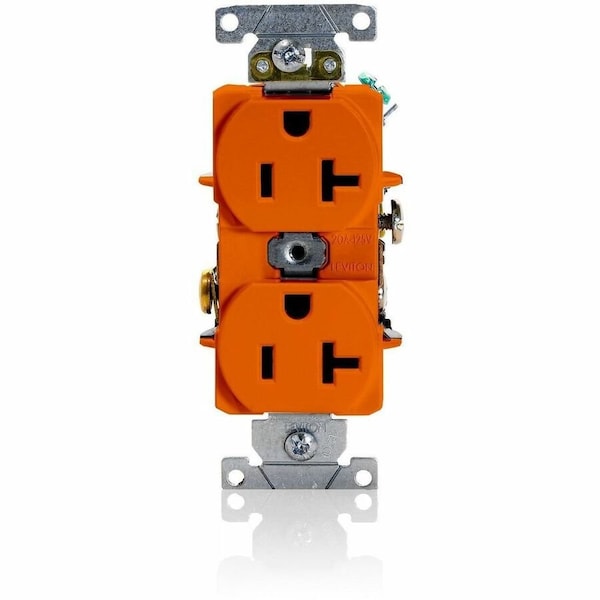

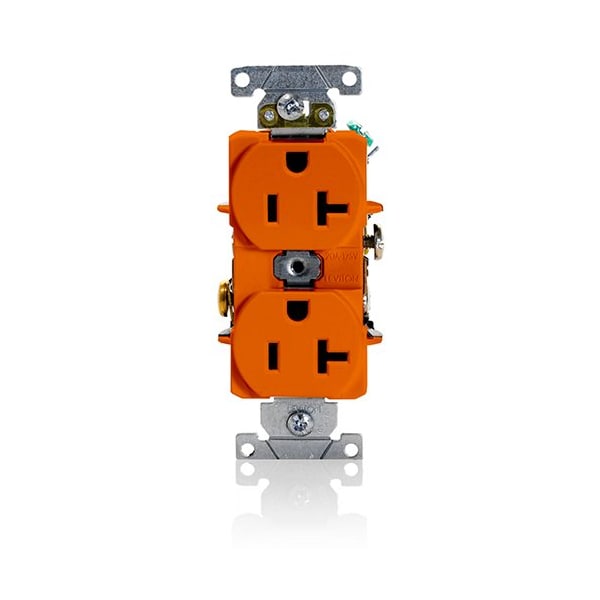

Duplex Receptacle Outlet, 20A, Orange, 125V

  • Mfr # 5362-SO

  • Zoro # G322982142

product price:
$
5.49
/ea

Key Features

Receptacle Type
Duplex
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 hp
Number of Outlets
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-SO
Zoro #
G322982142
UPC #
078477496305
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Width
1.4 in

Details

Receptacle Type
Duplex
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 hp
Number of Outlets
2
Features
Smooth Face
Wiring Method
Back/Side
Voltage Rating
125V AC
Number of Poles
2
Wire Connection Type
Screw Terminals
Housing Color
Orange
Current Rating
20 A
Grounding
Grounded
Number of Wires
3
Maximum Operating Temperature
75 Degrees C
Connection Orientation
Straight
Item
Duplex Receptacle Outlet
NEMA Receptacle Configuration
5-20R
Housing Material
PBT Polyester
Contact Material
Phosphor Bronze
For Environment
Food and Beverage, Oily/Greasy
Market
Industrial
Resistance Properties
Impact Resistant
Standards
CSA, FULS Marking, UL

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Orange, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
