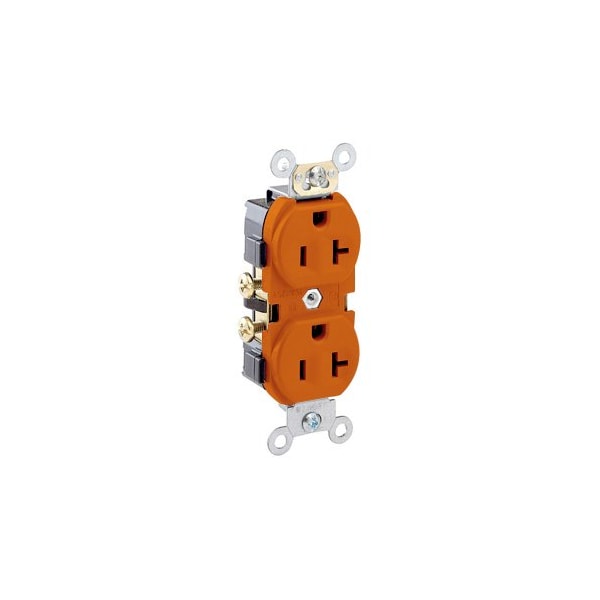

Duplex Receptacle Outlet, 20A, Orange, 125V

  • Mfr # CR20-O
  • Zoro # G122982267
product price:
$
3.25
/ea

Key Features

For Environment
Food and Beverage, Oily/Greasy
Standards
CSA, FULS Marking, UL
Number of Outlets
2
Housing Material
Thermoplastic
Contact Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CR20-O
Zoro #
G122982267
UPC #
078477109915
Country of Origin
United States
For Environment
Food and Beverage, Oily/Greasy
Standards
CSA, FULS Marking, UL
Number of Outlets
2
Housing Material
Thermoplastic
Contact Material
Brass
Horsepower Rating
1 hp
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Item
Duplex Receptacle Outlet
Resistance Properties
Tamper Resistant
Receptacle Type
Duplex
Wiring Method
Side
Maximum Operating Temperature
60 Degrees C
Grounding
Grounded
Current Rating
20 A
NEMA Receptacle Configuration
5-20R
Minimum Operating Temperature
-40 Degrees C
Market
Commercial
Number of Wires
3
Voltage Rating
125V AC
UL 94 Flammability Rating
V-2
Number of Poles
2
Features
Indented Face
Housing Color
Orange

Dimensions

Face Plate Width
1.5 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Fits Chest Size
Indented Face

Description

Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Orange, Housing Material Thermoplastic, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
