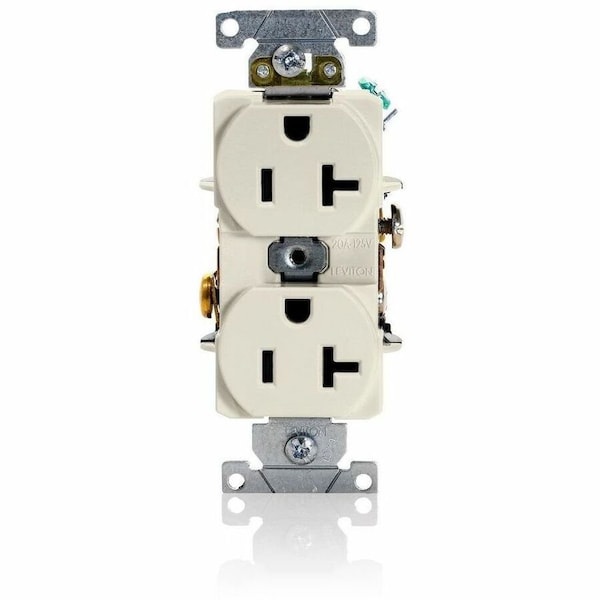

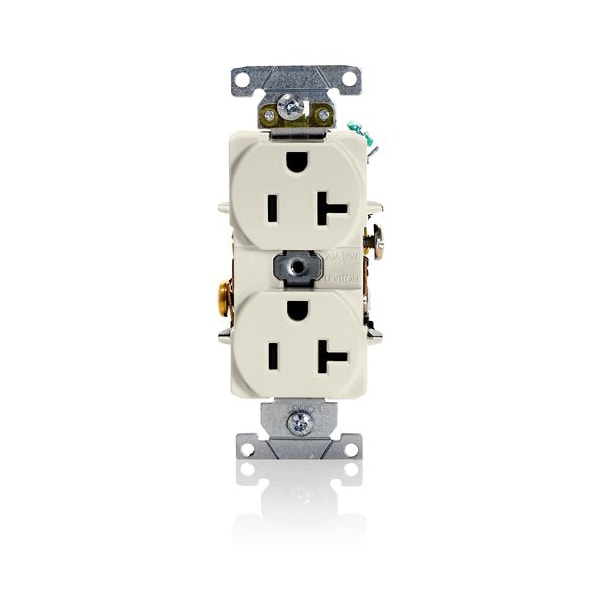

Duplex Receptacle/Oultet, 20 Amp
Mfr # 5352-T
Zoro # G222982365
product price:Â
$
6.15
/ea
Key Features
Contact Material
Phosphor Bronze
Market
Industrial
Horsepower Rating
1 hp
Maximum Operating Temperature
75 Degrees C
Housing Color
Light Almond
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5352-T
- Zoro #
- G222982365
- UPC #
- 078477270998
- Country of Origin
- Mexico
- Contact Material
- Phosphor Bronze
- Market
- Industrial
- Horsepower Rating
- 1 hp
- Maximum Operating Temperature
- 75 Degrees C
- Housing Color
- Light Almond
- Resistance Properties
- Impact Resistant
- Wiring Method
- Back/Side
- Number of Poles
- 2
- For Environment
- Food and Beverage, Oily/Greasy
- Grounding
- Grounded
- Connection Orientation
- Straight
- Number of Wires
- 3
- Receptacle Type
- Duplex
- Standards
- CSA, FULS Marking, UL
- Minimum Operating Temperature
- -40 Degrees C
- Number of Outlets
- 2
- Housing Material
- PBT Polyester
- Current Rating
- 20 A
- NEMA Receptacle Configuration
- 5-20R
- Item
- Duplex Receptacle/Oultet, 20 Amp
- Voltage Rating
- 125V AC
- UL 94 Flammability Rating
- V-2
- Wire Connection Type
- Screw Terminals
- Features
- Smooth Face
Description
Duplex Receptacle/Oultet, 20 Amp, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Light Almond, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Impact Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
