Shop LEVITON

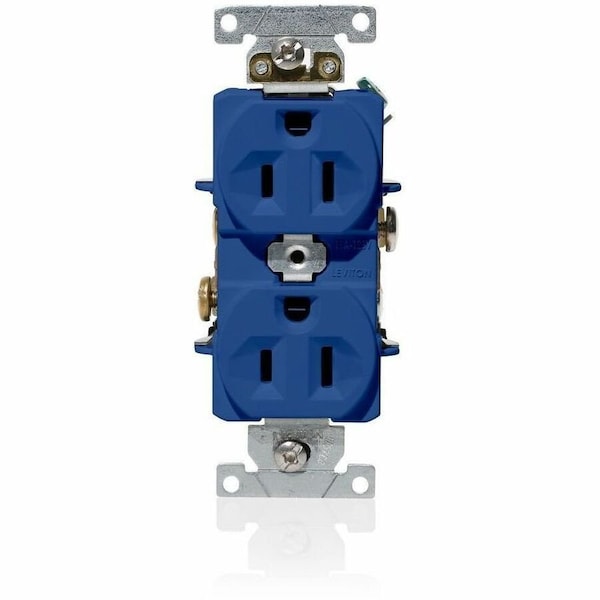

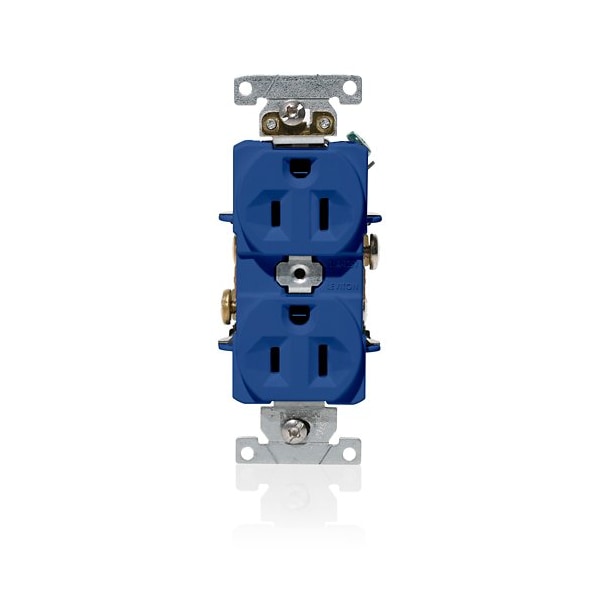

Duplex Receptacle/Outlet, 15 Amp

  • Mfr # C5262-BU

  • Zoro # G422982295

product price:
$
20.55
/ea

Key Features

UL 94 Flammability Rating
V-0
Contact Material
Phosphor Bronze
Connection Orientation
Straight
Wiring Method
Back/Side
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
C5262-BU
Zoro #
G422982295
UPC #
078477721650
Country of Origin
Mexico
UL 94 Flammability Rating
V-0
Contact Material
Phosphor Bronze
Connection Orientation
Straight
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-15R
Receptacle Type
Duplex
Number of Poles
2
Voltage Rating
125V AC
Housing Material
PBT Polyester
Standards
CSA, FULS Marking, UL
For Environment
Food and Beverage, Oily/Greasy
Number of Wires
3
Current Rating
15 A
Features
Indented Face
Grounding
Grounded
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Item
Duplex Receptacle/Outlet, 15 Amp
Horsepower Rating
1/2 hp
Housing Color
Blue

Description

Duplex Receptacle/Outlet, 15 Amp, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Blue, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-0
