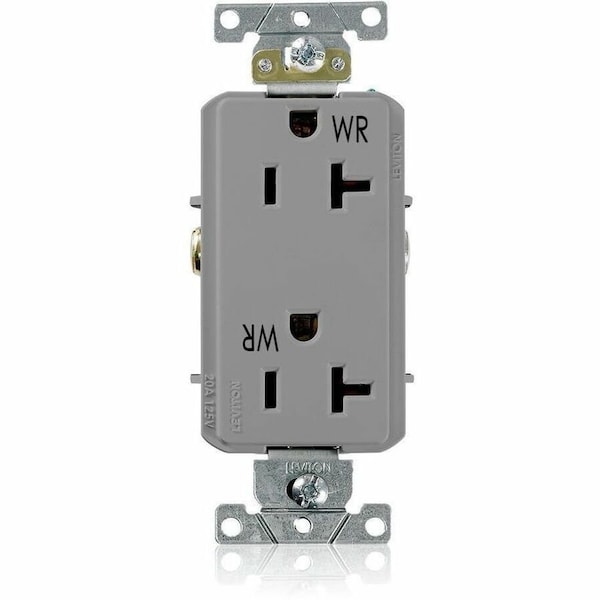

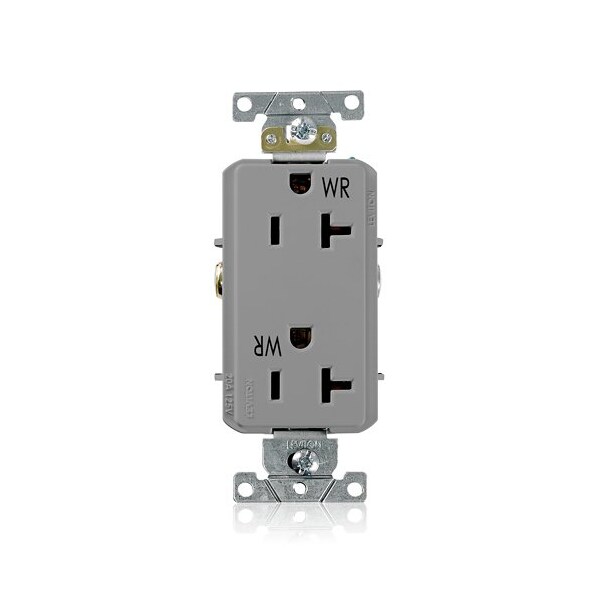

DuplexReceptacle, 20A, Gray, 125V, Indstrial
Mfr # WDR20-GY
Zoro # G422982349
product price:Â
$
23.99
/ea
Key Features
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Number of Poles
2
Features
Straight Blade
Voltage Rating
125V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WDR20-GY
- Zoro #
- G422982349
- UPC #
- 078477892749
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 14 AWG
- Face Plate Width
- 1.6 in
- Overall Depth
- 1.1 in
- Maximum Wire Size
- 10 AWG
- Mount Hole Center-to-Center Height
- 3.3 in
- Face Plate Height
- 2.6 in
Description
Duplex Receptacle, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-0
