Shop LEVITON

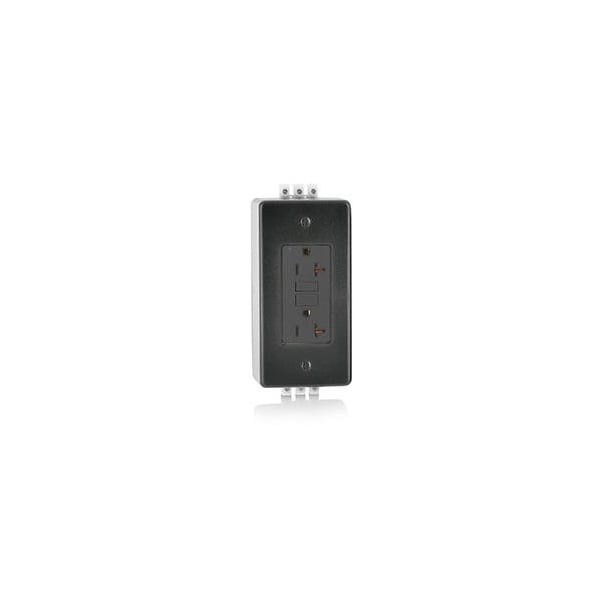

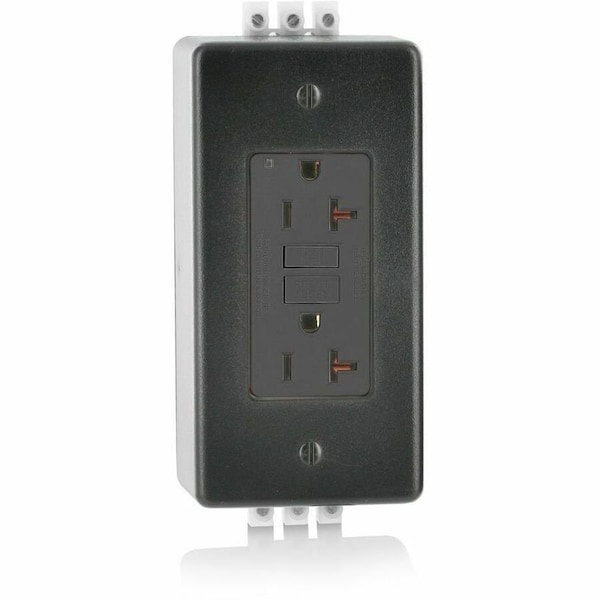

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # GFNT2-DIN

  • Zoro # G516090356

product price:  $88.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
GFNT2-DIN
Zoro #
G516090356
UPC #
078477725764
Country of Origin
China

Dimensions

Face Plate Width
2.5 in
Overall Depth
2.7 in
Face Plate Height
5.1 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Surface
Standards
ANSI-C-73, NEMA WD-1 and WD-6, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Number of Gangs
1
Features
Mounting Clip
For Environment
Food and Beverage, Oily/Greasy
GFCI
Yes
Connection Orientation
Straight
Housing Material
Polycarbonate
Visual Indicator Lights
Power Connected
Maximum Operating Temperature
66 Degrees C
Grade
Hospital Grade
Minimum Operating Temperature
-35 Degrees C
Number of Outlets
2
Self Testing
Yes
Contact Material
Brass
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
Cover Type
Screw-On Cover
IP Rating
Not Rated
AFCI
No
Number of Wall Plates Included
0
Surge Protection
No
Polarized
Yes
Flange Type
Non-Flanged
Shrouded
No
Status Indicator Lights
Power Connected

Description

Duplex Receptacle Outlet
