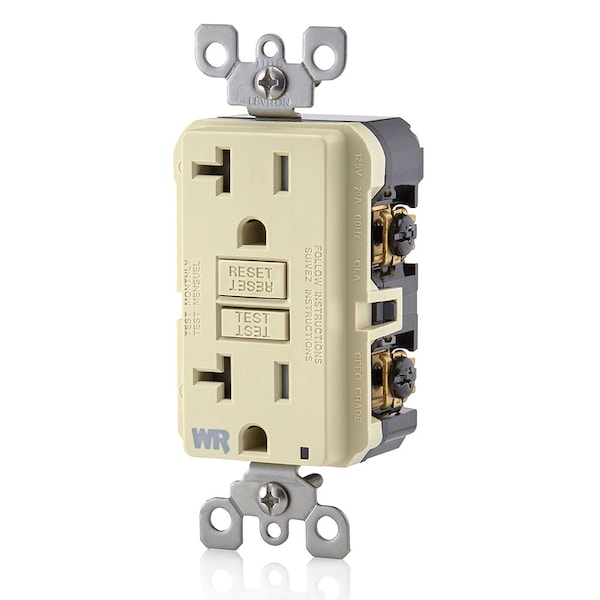

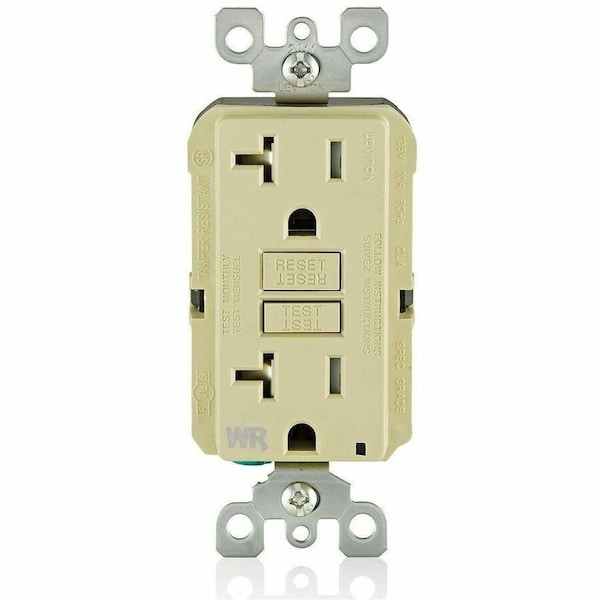

Leviton ELECTRICAL RECEPTACLES 20A WR/TR SLIM GCFI IV GFWT2-I - main

ELECTRICAL RECEPTACLES 20A WR/TR SLIM GCFI IV

  • Mfr # GFWT2-I

  • Zoro # G3898493

product price: $26.99
/ea

Key Features

Grounding
Green Ground Screw
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Tamper Resistant
Yes
Color
Ivory
Type
GFCI
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT2-I
Zoro #
G3898493
UPC #
78477709160
Country of Origin
China

Dimensions

Length
8.7500 in
Height
5.0000 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Grounding
Green Ground Screw
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Tamper Resistant
Yes
Color
Ivory
Type
GFCI
Voltage
125 VAC
Weather Resistant
Yes
Yoke
Stainless Steel
Standards and Certifications
UL/CSA, NEMA WD6
Trip Level
Class A, 5mA plus or minus 1mA
CSA C22.2 No. 42
Yes
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1 HP
CSA-C22.2 No. 144.1-06
File LR-57811
Grade
Residential/Commercial Specification Grade
Clamps
Brass
Short Circuit Current Rating
10KA
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Pole
2
UL 943
File E48380
Fed Spec WC-596
Yes
Operating Temperature
-35C to +66C
UL498
Yes
Feature
Self-Test
Grounding Screw
Stainless Steel
NEMA
5-20R
Terminal Screws
Stainless Steel
ANSI
C-73
Amperage
20 A
Line Contacts
Brass Triple-Wipe .031 Thick
Strap Material
Stainless Steel
Body Material
Polycarbonate
Face Material
Polypropylene
Wire
3
Terminal Accom.
14-10 AWG
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Termination
Back & Side
Terminal Type
Back/Side Wired
Temperature Rating
-35 to 66 °C
NEMA Rating
NEMA 5-20R

Description

Self-Test Tamper Resistant, Weather Resistant GFCI Receptacle. Nema 5-20R 20A-125V At Receptacle, 20A-125V Feed-through - Ivory With Ivory Test And Reset Buttons
