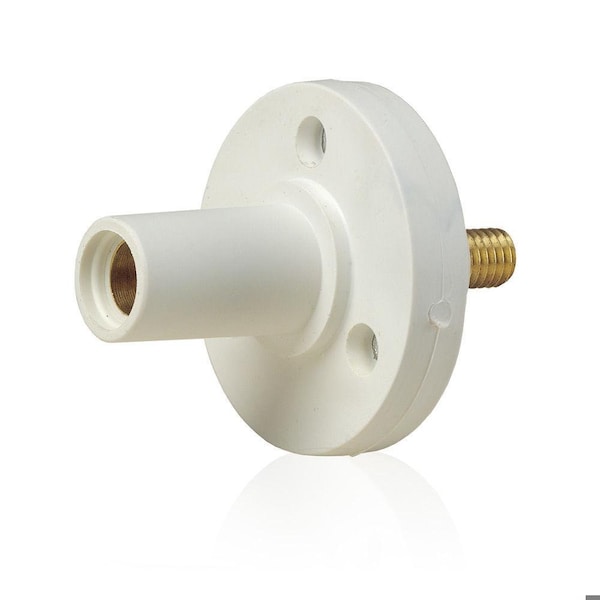

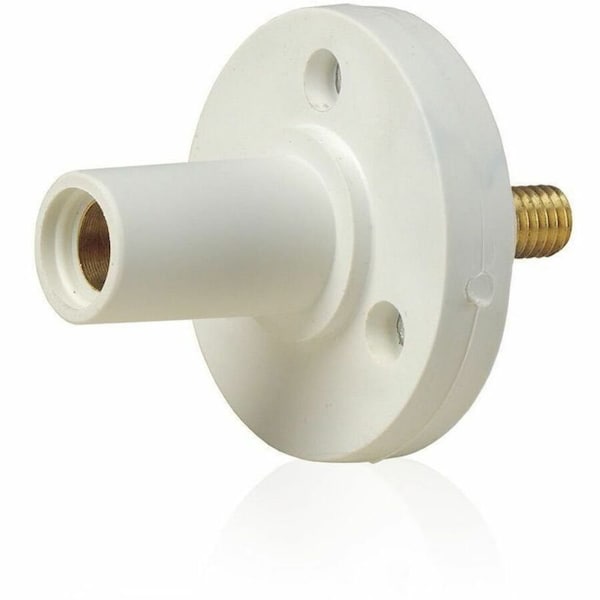

Female Panel Mount Receptacle
Mfr # 15R22-UW
Zoro # G815867086
product price: $28.89
/eaKey Features
Voltage Rating
600V AC, 600V DC
Standards
CSA C22.2 No 1691, UL 1691
Current Rating
150 A
Overall Length
2.04 in
Minimum Wire Size
8 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
15R22-UW
Zoro #
G815867086
UPC #
078477711934
Country of Origin
Mexico
Dimensions
Overall Length
2.04 in
Minimum Wire Size
8 AWG
Flange Width
0.38 in
Stud Thread Size
5/16"-18
Maximum Wire Size
2 AWG
Flange Diameter
1.9 in
Details
Voltage Rating
600V AC, 600V DC
Standards
CSA C22.2 No 1691, UL 1691
Current Rating
150 A
Item
Single Pole Receptacle
Phase
Single
Connection Orientation
Straight
Flange Shape
Round
Contact Material
Brass
For Location
Indoor, Outdoor
Gender
Female
Housing Material
Santoprene TPV
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
3R
Housing Color
White
Mounting Style
Threaded Mounting
End Type
Taper Nose
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 150 A, Gender Female, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter 1.9 in, Flange Shape Round, Flange Width 0.38 in, NEMA Enclosure Rating 3R, Standards CSA C22.2 No 1691, UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
