Shop LEVITON

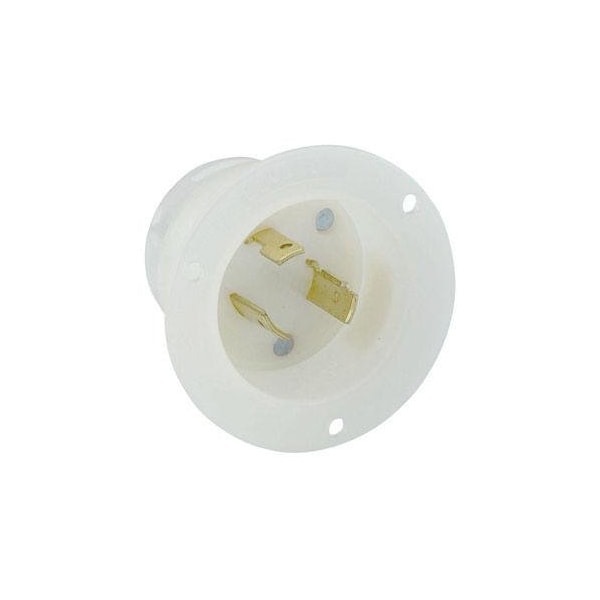

Flanged Locking Inlet, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White

  • Mfr # 2315
  • Zoro # G116091418
product price:
$
29.99
/ea

Key Features

NEMA Receptacle Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2315
Zoro #
G116091418
UPC #
078477801093
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Diameter
2.87 in
Overall Depth
2.06 in
Minimum Wire Size
18 AWG
Flange Diameter
2.75 in
Flange Width
3.8 in
Flange Height
4.12 in
Fits Chest Size
VARI-SIZE(R) Insert Adjusts to Wide Range of Cord Sizes

Details

Item
Locking Plug
NEMA Receptacle Configuration
L5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NOM 57, RoHS, UL FED SPEC WC-596 File E13393, UL498 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, Self-Extinguishing Material
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
Flange Material
Nylon
Wiring Style
Hinged
Horsepower Rating
1 hp
NEMA Plug Configuration
L5-20P
Market
Industrial
Housing Material
Nylon
Features
VARI-SIZE(R) Insert Adjusts to Wide Range of Cord Sizes
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Number of Blades
3
Flange Shape
Round
Includes
None
Polarized
Yes
Number of Gangs
1
UL 94 Flammability Rating
V-2
Series
Insulgrip
Midget Locking
No
Shrouded
Yes
Connection Orientation
Straight
Grade
Federal Specification
Number of Outlets
1

Description

Flanged Inlet Locking Receptacle
