Shop LEVITON

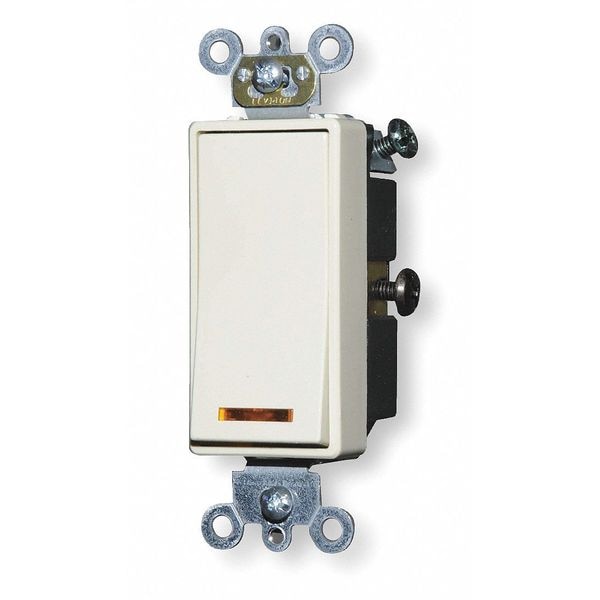

Illuminatd Wall Swtch, 3-Way, 20A, Wht, 120V

  • Mfr # 5633-2W

  • Zoro # G1338811

product price:
$
17.19
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5633-2W
Zoro #
G1338811
UPC #
078477520284
Country of Origin
Mexico
Item
Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Commercial
Antimicrobial
No
Standards
ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94
Rated HP
1
Description/Special Features
Light On with Load Off
Voltage Rating
120V AC
Features
10-Year Limited
Horsepower Rating
1 hp
Current Rating
20 A
Housing Material
Thermoplastic
Wire Connection Type
Screw Terminals
Grounding
Grounded
Illuminated
Yes
Maximum Operating Temperature
149 Degrees F
Pilot Light
Yes
For Environment
Industrial
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Strap Material
Steel
Nightlight
Yes
Number of Switches
1

Description

Wall Switch, Color White, Current Rating 20 A, Illuminated Yes, Pilot Light Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight Yes, Number of Switches 1, Standards ANSI C-73, NEMA WD-6, NEMA WD-1, NOM 57, Rated V-2 Per UL 94, Strap Material Steel, Switch Style Rocker
