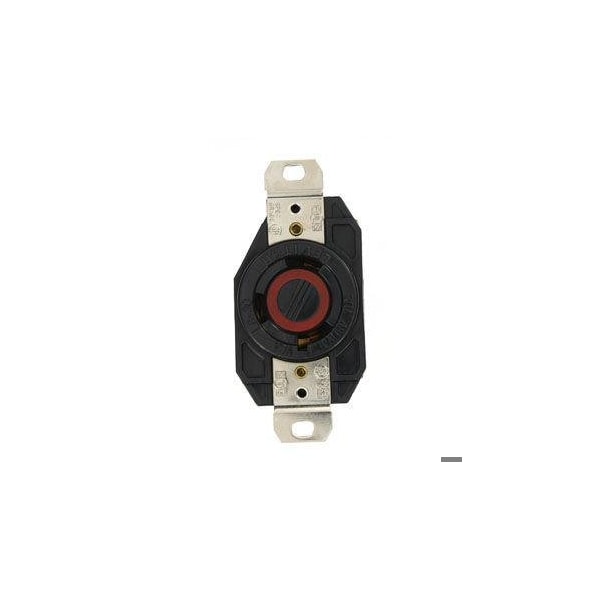

Flanged Locking Receptacle, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Black

Mfr # 2640
Zoro # G816090162

45.75

Key Features

NEMA Receptacle Configuration

L8-30R

Current Rating

30 A

Voltage Rating

480V AC

Phase

Single

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2640
Zoro #: G816090162
UPC #: -
Country of Origin: Mexico

Dimensions

Overall Depth: 1.31 in
Face Plate Height: 2.67 in
Minimum Wire Size: 14 AWG
Maximum Wire Size: 8 AWG
Mount Hole Center-to-Center Height: 3.75 in
Face Plate Width: 1.69 in
Face Diameter: 1.56 in

Details

Item: Flanged Locking Receptacle
NEMA Receptacle Configuration: L8-30R
Current Rating: 30 A
Voltage Rating: 480V AC
Phase: Single
Number of Poles: 2
Number of Wires: 3
Wire Connection Type: Screw Terminals
Grounding: Grounded
Housing Color: Black
Mount Type: Flush
Flange Type: Non-Flanged
Standards: ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, UL 498, UL FED SPEC W-C-596
NEMA Enclosure Rating: Not Rated
Wiring Style: Standard
Shrouded: Yes
Minimum Operating Temperature: -40 Degrees C
For Environment: Corrosive
Market: Industrial
Maximum Operating Temperature: 60 Degrees C
Housing Material: Nylon
Connection Orientation: Straight
Polarized: Yes
Number of Gangs: 1
Contact Material: Brass
Hub Type: Dead End
Series: Hubbell-PRO
Cover Type: No Cover
Number of Outlets: 2
UL 94 Flammability Rating: V-0
Midget Locking: No
IP Rating: Not Rated
Horsepower Rating: 1 hp

Description

Flush Mtg Locking Receptacle,Black
