  11. Flanged Locking Receptacle, Non-NEMA, 10/20 A, 250V AC, Single Phase, 4 Pole, Flush Mount, Black

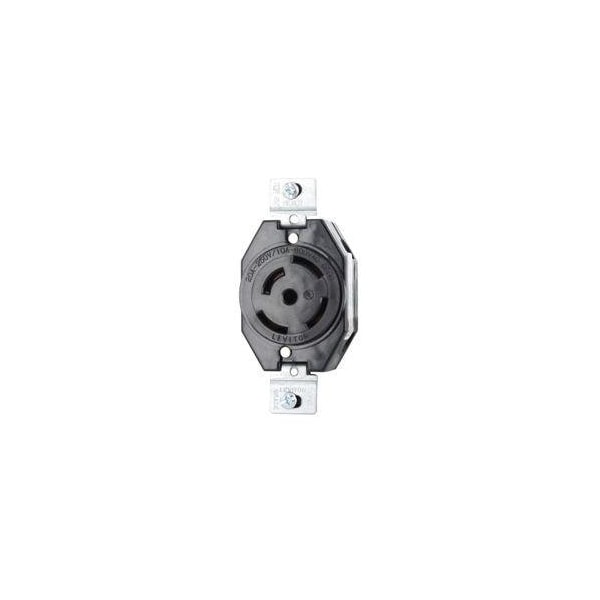

Leviton Flanged Locking Receptacle, Non-NEMA, 10/20 A, 250V AC, Single Phase, 4 Pole, Flush Mount, Black 3520 - main

Flanged Locking Receptacle, Non-NEMA, 10/20 A, 250V AC, Single Phase, 4 Pole, Flush Mount, Black

  • Mfr # 3520

  • Zoro # G916090154

product price: $58.34
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3520
Zoro #
G916090154
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Mount Hole Center-to-Center Height
3.28 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
NEMA Enclosure Rating
Not Rated
Standards
ANSI C-73, CSA, NEMA WD-6, NOM 57
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Wiring Style
Standard
Polarized
Yes
Housing Material
Nylon
Number of Gangs
1
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
Contact Material
Brass
Market
Industrial
Maximum Operating Temperature
60 Degrees C

Description

Flush Mtg Locking Receptacle,Black
