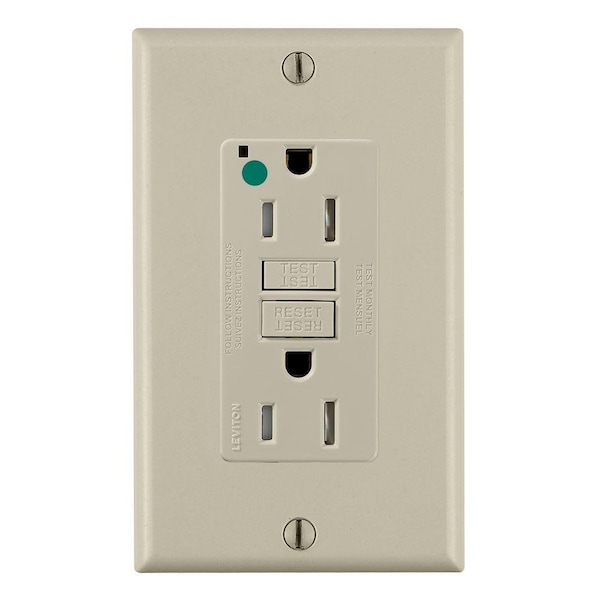

Leviton GFCI Duplex Receptacle Outlet GFTR1-HFI - main

GFCI Duplex Receptacle Outlet

  • Mfr # GFTR1-HFI

  • Zoro # G716091498

product price: $39.55
/ea

Key Features

Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Number of Wires
3
GFCI
Yes
Receptacle Type
Duplex
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-HFI
Zoro #
G716091498
UPC #
078477727799
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Overall Depth
1.4 in
Maximum Wire Size
10 AWG

Details

NEMA Receptacle Configuration
5-15R
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Number of Wires
3
GFCI
Yes
Item
GFCI Duplex Receptacle Outlet
Receptacle Type
Duplex
Housing Material
Polycarbonate
Number of Poles
2
Current Rating
15 A, 20 A
Wiring Method
Back, Side
Standards
ANSI-C-73, CSA, NEMA WD-1 and WD-6, NOM-ANCE, UL, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Cover Type
Screw-On Cover
Grounding
Grounded
Housing Color
Ivory
Contact Material
Brass
Number of Outlets
2
UL 94 Flammability Rating
V-0
Self Testing
Yes
Minimum Operating Temperature
-35 Degrees C
Visual Indicator Lights
Power Connected
Grade
Hospital Grade
Resistance Properties
Tamper Resistant
For Environment
Food and Beverage, Oily/Greasy
Maximum Operating Temperature
66 Degrees C
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Hub Type
Feed Through
Voltage Rating
125V AC
Includes
Wallplate
Mount Type
Flush
Number of Gangs
1
Phase
Single

Description

GFCI Duplex Receptacle Outlet
