  11. GFCI Receptacle, 15A, 125Vac, 5-15R, Ivory

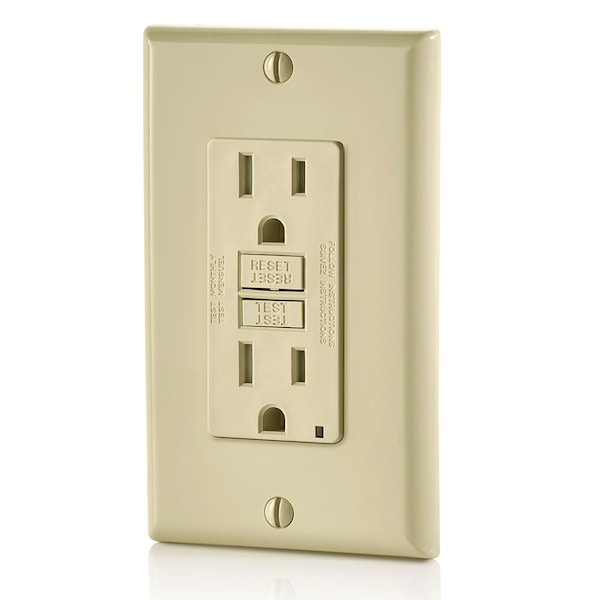

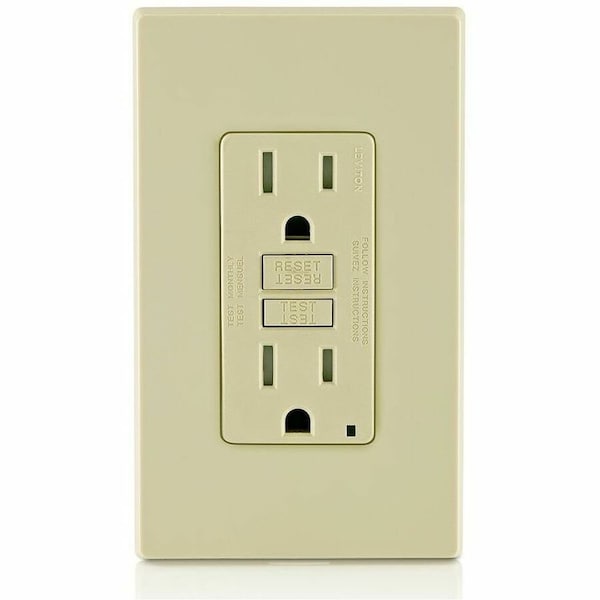

Leviton GFCI Receptacle, 15A, 125Vac, 5-15R, Ivory GFTR1-I - main

GFCI Receptacle, 15A, 125Vac, 5-15R, Ivory

  • Mfr # GFTR1-I

  • Zoro # G3834696

product price: $21.95
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C-73, CSA C22.2 No. 42, 144.1-06 File No. LR-57811 Certified, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NEMA WD-6, NOM Certified, UL 498, 943 File No. E48380 Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR1-I
Zoro #
G3834696
UPC #
78477487136
Country of Origin
China

Dimensions

Width
1.69 in
Length
2.88 in
Height
4.69 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C-73, CSA C22.2 No. 42, 144.1-06 File No. LR-57811 Certified, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NEMA WD-6, NOM Certified, UL 498, 943 File No. E48380 Listed
Self-Testing
Yes
Power Indicator
Yes
Surge Suppression
No
Amps
15A
Weather Resistant
No
Wiring Method
Back and Side
HP
1.0
Application Environment
Commercial
Color
Ivory
NEMA Configuration
5-15R
Type
Standard Duplex
Outlet Type
Decorator
Voltage
125VAC
Tamper Resistant
Yes
Reset Type
Automatic
Flammability
Rated V-2 per UL 94
Grounding Screw
Plated Steel
Line Contacts
Brass Double Wipe .031 Thick
Grade
Residential/Commercial Specification Grade
Pole
2
UL498
Yes
Wire
3
Operating Temperature
-35C to +66C
Body Material
Polycarbonate
Feature
Self-Test
At Rated Voltage
1 HP
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Fed Spec WC-596
Yes
UL 943
File E48380
Trip Level
Class A, 5mA plus or minus 1mA
ANSI
C-73
Terminal Accom.
14-10 AWG
Wallplate
Included
CSA C22.2 No. 42
Yes
Amperage
15 A
Yoke
Zinc-Plated Steel
NEMA
5-15R
Clamps
Brass
Standards and Certifications
UL/CSA, NEMA WD6
Terminal Screws
Plated Steel
Termination
Back & Side
Strap Material
Galvanized Steel
Face Material
Thermoplastic
Torque Range
14-18 in.-lbs
Short Circuit Current Rating
10KA
CSA-C22.2 No. 144.1-06
File LR-57811
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Amperage Rating
20 A
Temperature Rating
-35 to 66 °C
Terminal Type
Back/Side Wired
NEMA Rating
NEMA 5-15R
Voltage Rating
125 V

Description

Self-Test Slim Tamper Resistant GFCI Receptacle. Nema 5-15R 15A-125V At Receptacle, 20A-125V Feed-through. Lighted - Ivory With Ivory Test And Reset Button.
