  9. Recept, Brown, 20 A, GFCI, 2P3W, Bk;Sd, 1PK
Shop All GFCI Receptacles
Leviton

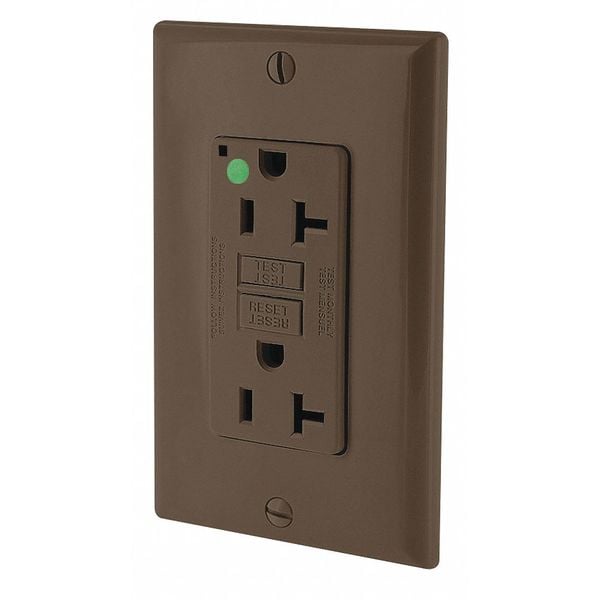

Recept, Brown, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

product price: $29.99
/ea
Sold in multiples of 10 for $299.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
  • Color Brown
  • Color - Plugs and Receptacles Brown
  • Weather Resistant - Plugs and Receptacles No
  • Number of Wires 3
See all product information

Product Information

Dimensions

Overall Depth 1.4 in
Mount Hole Center-to-Center Height 3.3 in
Face Plate Width 1.7 in
Face Plate Height 2.8 in
Maximum Wire Size 10 AWG
Minimum Wire Size 14 AWG

Details

Standards ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Color Brown
Color - Plugs and Receptacles Brown
Weather Resistant - Plugs and Receptacles No
Number of Wires 3
Number of Poles 2
Outlet Type - Plugs and Receptacles Duplex
Tamper Resistant No
NEMA Configuration 5-20
Item - Plugs and Receptacles GFCI Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles 5-20R
Voltage - Plugs and Receptacles 125V
Item GFI Receptacle
Voltage 125 VAC
HP 1 hp
Self-Testing Yes
Wiring Method Back, Side
Application Environment Hospital Grade
Amps - Plugs and Receptacles 20 A
Surge Suppression Yes
Special Features Cold Impact Resistance, UV Stabilized Plastics
Wiring Method - Plugs and Receptacles Back and Side
Power Indicator Yes
Housing Color Brown
Number of Outlets 2
Number of Poles & Wires 2 Pole / 3 Wire
NEMA Receptacle Configuration 5-20R
Maximum Operating Temperature 150.8 Degrees F
Includes Wallplate
Key Resistance Properties Standard Resistance
NEMA Enclosure Rating Not Rated
Additional Electrical Protection GFCI, Surge Protection
Polarized Yes
Wire Connection Types Screw Terminals
Phase Single
Self Testing Yes
Surge Protection Yes
Wire Connection Type Screw Terminals
Visual Indicator Lights Power Connected
Minimum Operating Temperature -31 Degrees F
Housing Material Polycarbonate
Cover Type No Cover
GFCI Yes
Receptacle Type Decorator Duplex
UL 94 Flammability Rating V-0
Grounding Grounded
Horsepower Rating 1 hp
Voltage Rating 125V AC
Includes Mounting Hardware Yes
Mount Type Flush
Current Rating 20 A
Grade Hospital Grade Fed. Spec.
Connection Orientation Straight
Contact Material Brass
Screw Terminal Torque 14-18 in-lbs
Terminal Accom. 14-10 AWG solid or stranded
Applicable Standards UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Termination Back or Side Wire
Wire 3
Terminal ID Brass-Hot, Green-Ground, Silver-Neutral
Short Circuit Current Rating 10kA
Flammability Rated V-0 per UL 94
Pole 2
Grounding Screw Plated Steel
Function GFCI
Face Material PBT
Device Type Duplex Receptacle Outlet
Certification/Listing UL, CSA, NOM-ANCE
Terminal Screws Plated Steel
Strap Material Galvanized Steel
At Rated Voltage 1 HP
Line Contacts Brass
Operating Temperature -35C to +66C
Feature Wallplate Included|Power Indication
ANSI C-73
Body Material Polycarbonate
Amperage 20 A
Ground Clips Brass
NEMA WD-1 & WD-6
Terminal Clamp Brass

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
