  11. GFCI Receptacle, 20A, 125Vac, 5-20R, Almond

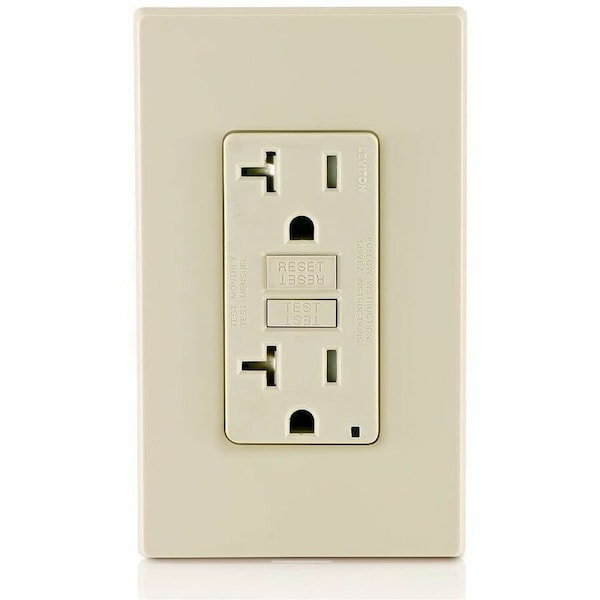

Leviton GFCI Receptacle, 20A, 125Vac, 5-20R, Almond GFTR2-T - main

GFCI Receptacle, 20A, 125Vac, 5-20R, Almond

  • Mfr # GFTR2-T

  • Zoro # G3837182

product price: $23.99
/ea

Key Features

Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-T
Zoro #
G3837182
UPC #
78477497333
Country of Origin
China

Dimensions

Length
9.2500 in
Height
6.2500 in
Dimensions
4.21 in H x 1.69 in W x 1.4 in D

Details

Item
GFCI Receptacle
Grounding
Self Grounding
Mounting Type
Flush
Number of Poles
2
Number of Wires
3
Standards
ANSI C73CSA C22.2 No. 144.1-06/42 File No. LR57811Federal Specification WC596MIL-SPEC A-A-55459-SBNOM CertifiedUL 498/943 File No. E48380
Outlet Type
Decorator
Weather Resistant
No
Power Indicator
Yes
Wiring Method
Back and Side
Type
Standard Duplex
NEMA Configuration
5-20R
Self-Testing
Yes
Application Environment
Commercial
Surge Suppression
No
Tamper Resistant
Yes
Reset Type
Automatic
Color
Light Almond
Voltage
125VAC
HP
1.0
Amps
20A
Termination
Back & Side
Operating Temperature
-35C to +66C
Terminal Screws
Plated Steel
Face Material
Thermoplastic
Grade
Residential/Commercial Specification Grade
ANSI
C-73
Feature
Self-Test
Flammability
Rated V-2 per UL 94
Fed Spec WC-596
Yes
CSA C22.2 No. 42
Yes
UL 943
File E48380
Pole
2
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Body Material
Polycarbonate
Wire
3
Terminal Accom.
14-10 AWG
Grounding Screw
Plated Steel
NEMA
5-20R
Yoke
Zinc-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1 HP
CSA-C22.2 No. 144.1-06
File LR-57811
Clamps
Brass
Trip Level
Class A, 5mA plus or minus 1mA
Standards and Certifications
UL/CSA, NEMA WD6
UL498
Yes
Line Contacts
Brass Triple-Wipe
Strap Material
Galvanized Steel
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Wallplate
Included
Amperage
20 A
Torque Range
14-18 in.-lbs
Short Circuit Current Rating
10KA
Terminal Type
Back/Side Wired
Temperature Rating
-35 to 66 °C
NEMA Rating
NEMA 5-20R
Voltage Rating
125 V

Description

Self-Test Slim Tamper Resistant GFCI Receptacle. Nema 5-20R 20A-125V At Receptacle, 20A-125V Feed-through. Lighted - Light Almond With Light Almond Test And Reset Button.
