Shop MOLEX

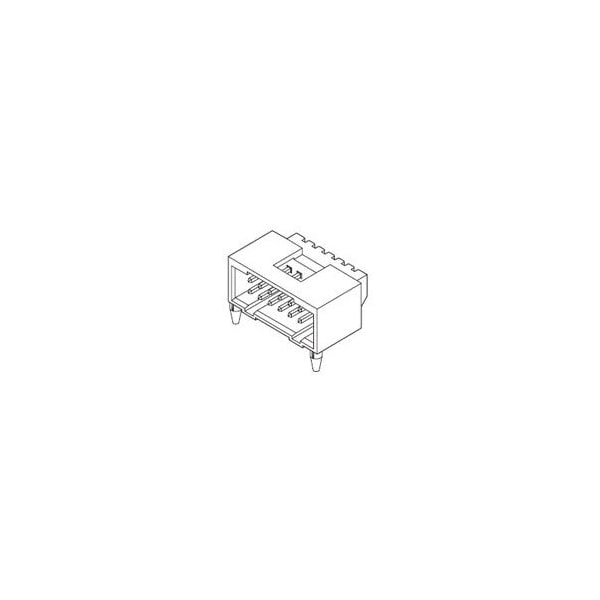

CGrid RA Shrd Hdr wPg 15SAu 10Ckt

  • Mfr # 74164-0010

  • Zoro # G4042699

product price:  $3.55
/ea
Sold in multiples of 28 for $99.40

Key Features

Application
Board-to-Board, Signal
Circuits (Loaded)
10
Pitch - Termination Interface
2.54mm
Product Name
C-Grid
Series
74164
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
74164-0010
Zoro #
G4042699
UPC #
883906878450
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
3.18mm

Details

Application
Board-to-Board, Signal
Circuits (Loaded)
10
Pitch - Termination Interface
2.54mm
Product Name
C-Grid
Series
74164
Current - Maximum per Contact
2.5A
Orientation
Right Angle
Temperature Range - Operating
-40° to +105°C
Voltage - Maximum
250V
Material - Plating Termination
Tin
Termination Interface: Style
Through Hole
Number of Rows
2
Pitch - Mating Interface
2.54mm
Duration at Max. Process Temperature (seconds)
5
PCB Locator
Yes
Lock to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
Material - Plating Mating
Gold
Circuits (maximum)
10
UL
E29179
Process Temperature max. C
260
Flammability
94V-0
Color - Resin
Black
Material - Metal
Phosphor Bronze
Material - Resin
High Performance Thermoplastic
Durability (mating cycles max)
50
Plating min - Mating
0.381µm
