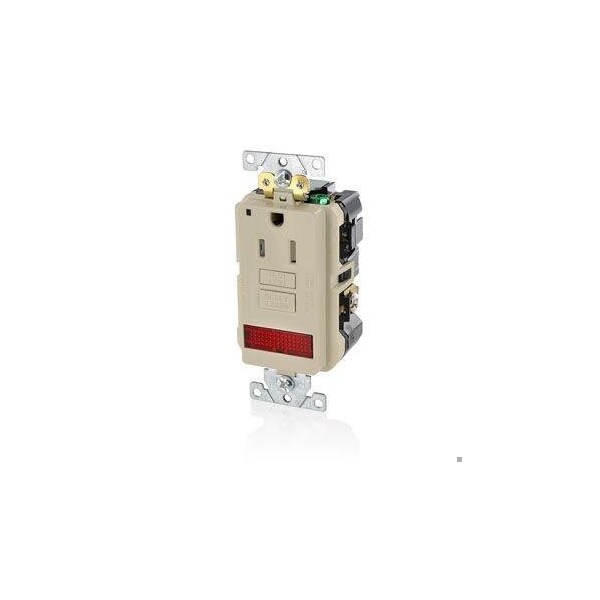

Leviton GFCI Single Receptacle Outlet GFPL1-PLT - main

GFCI Single Receptacle Outlet

  • Mfr # GFPL1-PLT

  • Zoro # G816091466

product price: $38.39
/ea

Key Features

GFCI
Yes
Connection Orientation
Straight
Cover Type
Screw-On Cover
Number of Wires
3
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFPL1-PLT
Zoro #
G816091466
UPC #
078477723869
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in

Details

GFCI
Yes
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Cover Type
Screw-On Cover
Item
GFCI Single Receptacle Outlet
Number of Wires
3
NEMA Enclosure Rating
Not Rated
Wiring Method
Back, Side
Number of Poles
2
Grounding
Grounded
Housing Color
Light Almond
Receptacle Type
Single
Housing Material
Polycarbonate
Standards
ANSI-C-73, CSA, NEMA WD-1 and WD-6, NOM-ANCE, UL, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Current Rating
15 A, 20 A
Market
Industrial
Voltage Rating
125V AC
For Environment
Food and Beverage, Oily/Greasy
Maximum Operating Temperature
66 Degrees C
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
Includes
Wallplate
UL 94 Flammability Rating
V-0
Number of Outlets
1
Resistance Properties
Tamper Resistant
Contact Material
Brass
Minimum Operating Temperature
-35 Degrees C
Wire Connection Type
Screw Terminals
Self Testing
Yes
Phase
Single
Mount Type
Flush
Number of Gangs
1

Description

GFCI Single Receptacle Outlet
