Shop LEVITON

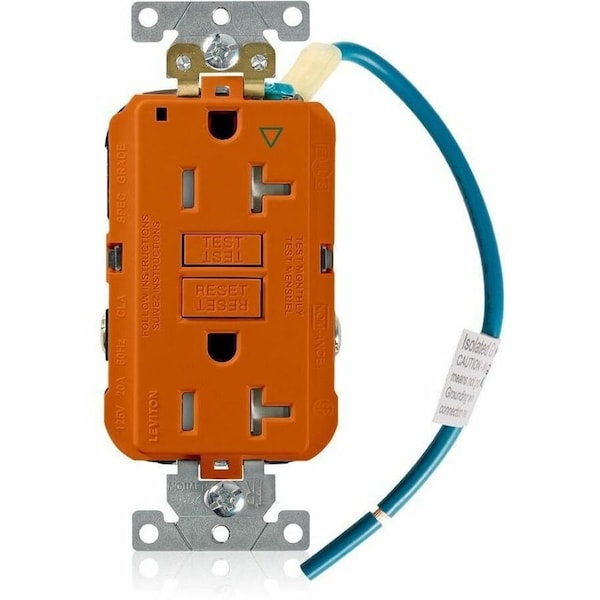

GFCIDplxRcptclOutlt, 20A, 125VAC, Org

  • Mfr # GFTR2-IGO

  • Zoro # G716091467

product price:  $39.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
20 A
GFCI
Yes
Grounding
Isolated Ground
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR2-IGO
Zoro #
G716091467
UPC #
078477724064
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Maximum Wire Size
10 AWG

Details

Item
GFCI Duplex Receptacle Outlet
Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
20 A
GFCI
Yes
Grounding
Isolated Ground
Housing Color
Orange
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Standards
ANSI-C-73, CSA, NEMA WD-1 and WD-6, NOM-ANCE, UL, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Wiring Method
Back/Side
Receptacle Type
Duplex
Market
Industrial
Resistance Properties
Tamper Resistant
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Screw Terminals
Number of Outlets
2
UL 94 Flammability Rating
V-0
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Minimum Operating Temperature
-35 Degrees C
Contact Material
Brass
Maximum Operating Temperature
66 Degrees C
Horsepower Rating
1 hp
Number of Gangs
1
Phase
Single
Mount Type
Flush
IP Rating
Not Rated
Grade
General Use
Flange Type
Non-Flanged
AFCI
No
Shrouded
No
Polarized
Yes
Surge Protection
No
Number of Wall Plates Included
0
Status Indicator Lights
Power Connected

Description

GFCI Duplex Receptacle Outlet
