  6. GFCIDplxRcptclOutlt, 15/20A, 125VAC, Ivry

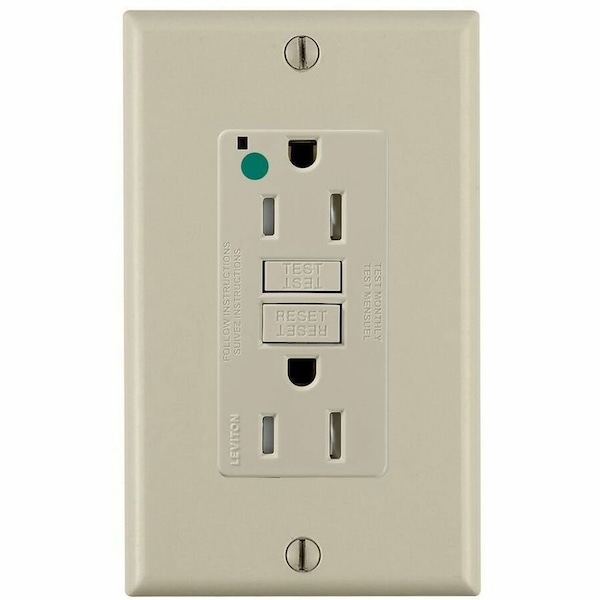

Leviton GFCIDplxRcptclOutlt, 15/20A, 125VAC, Ivry GFTR1-HFI - main

GFCIDplxRcptclOutlt, 15/20A, 125VAC, Ivry

  • Mfr # GFTR1-HFI

  • Zoro # G716091498

product price:  $39.55
/ea

Key Features

GFCI
Yes
NEMA Enclosure Rating
Not Rated
Number of Poles
2
Number of Wires
3
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GFTR1-HFI
Zoro #
G716091498
UPC #
078477727799
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Overall Depth
1.4 in
Maximum Wire Size
10 AWG

Details

GFCI
Yes
NEMA Enclosure Rating
Not Rated
Number of Poles
2
Number of Wires
3
NEMA Receptacle Configuration
5-15R
Connection Orientation
Straight
Item
GFCI Duplex Receptacle Outlet
Receptacle Type
Duplex
Housing Material
Polycarbonate
Current Rating
15 A, 20 A
Wiring Method
Back, Side
Standards
ANSI-C-73, CSA, NEMA WD-1 and WD-6, NOM-ANCE, UL, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Cover Type
Screw-On Cover
Grounding
Grounded
Housing Color
Ivory
Contact Material
Brass
Number of Outlets
2
UL 94 Flammability Rating
V-0
Self Testing
Yes
Minimum Operating Temperature
-35 Degrees C
Visual Indicator Lights
Power Connected
Grade
Hospital Grade
Resistance Properties
Tamper Resistant
For Environment
Food and Beverage, Oily/Greasy
Maximum Operating Temperature
66 Degrees C
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Hub Type
Feed Through
Voltage Rating
125V AC
Includes
Wallplate
Mount Type
Flush
Number of Gangs
1
Phase
Single

Description

GFCI Duplex Receptacle Outlet
