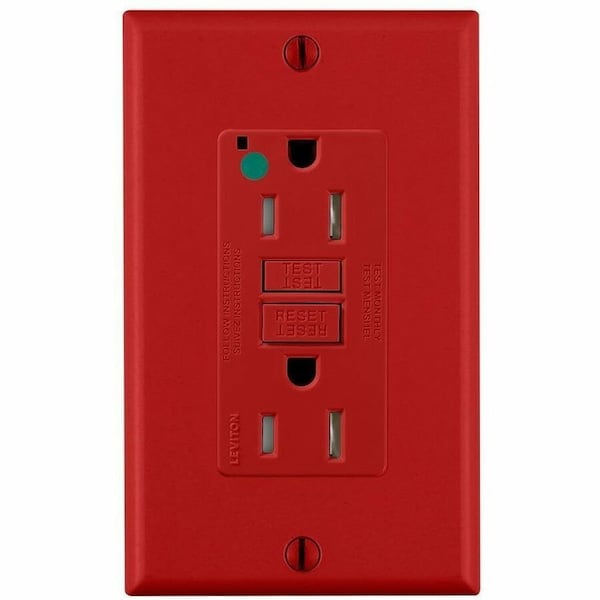

Leviton GFCIDplxRcptclOutlt, 15/20A, 125VAC, Rd GFTR1-HFR - main

GFCIDplxRcptclOutlt, 15/20A, 125VAC, Rd

  • Mfr # GFTR1-HFR

  • Zoro # G516091490

product price:  $39.55
/ea

Key Features

Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
15 A, 20 A
GFCI
Yes
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFTR1-HFR
Zoro #
G516091490
UPC #
078477727805
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
GFCI Duplex Receptacle Outlet
Connection Orientation
Straight
Cover Type
Screw-On Cover
Current Rating
15 A, 20 A
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Standards
ANSI-C-73, CSA, NEMA WD-1 and WD-6, NOM-ANCE, UL, UL 943, UL 498, CSA C22.2 No. 42 and 144, Fed Spec W-C-596
Receptacle Type
Duplex
Wiring Method
Back, Side
Includes
Wallplate
Minimum Operating Temperature
-35 Degrees C
For Environment
Food and Beverage, Oily/Greasy
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Self Testing
Yes
Grade
Hospital Grade
Hub Type
Feed Through
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
66 Degrees C
Voltage Rating
125V AC
Resistance Properties
Tamper Resistant
Visual Indicator Lights
Power Connected
Contact Material
Brass
Number of Outlets
2
Mount Type
Flush
Phase
Single
Number of Gangs
1

Description

GFCI Duplex Receptacle Outlet
