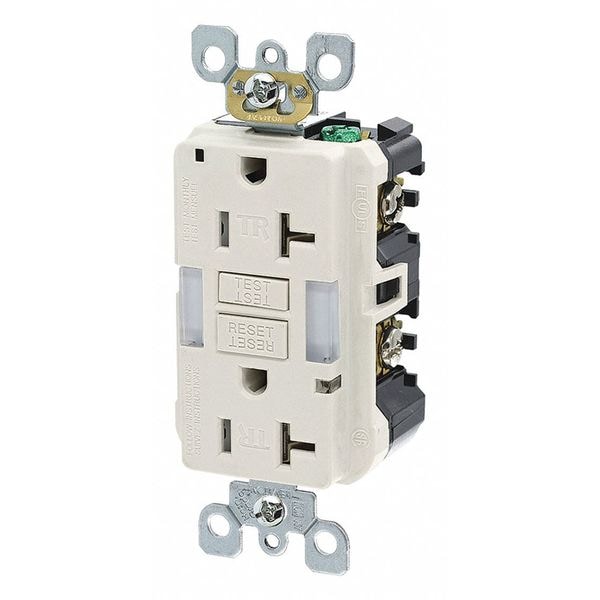

Leviton GFI Receptacle GFNL2-T - main

GFI Receptacle

  • Mfr # GFNL2-T

  • Zoro # G404392982

product price: $40.99
/ea

Key Features

Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL2-T
Zoro #
G404392982
UPC #
07847771482
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Light Almond
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Tamper Resistant
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Surge Suppression
Yes
Application Environment
Commercial
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Amps - Plugs and Receptacles
20 A
HP
1 hp
NEMA Configuration
5-20
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Color - Plugs and Receptacles
Light Almond
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method
Side
Power Indicator
Yes
Voltage - Plugs and Receptacles
125V
Additional Electrical Protections
GFCI & Surge Protection
Hub Type
Feed Through
Includes
Strap Material
Resistance Properties
Tamper Resistant
Self Testing
Yes
Mount Type
Flush
Contact Material
Brass
Wire Connection Types
Screw Terminals
Surge Protection
Yes
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Key Resistance Properties
Tamper Resistant
Additional Electrical Protection
GFCI, Surge Protection
Horsepower Rating
1 hp
Primary Resistance Properties
Tamper Resistant - Tamper Resistant - 20 A
Market
Commercial, Residential
Number of Poles & Wires
2 Pole / 3 Wire
Grade
Federal Specification
Visual Indicator Lights
Power Connected
Wire Connection Type
Screw Terminals
Features
Built-In Night Light
Receptacle Type
Decorator Duplex
Minimum Operating Temperature
-31 Degrees F

Description

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Light Almond, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
