Leviton

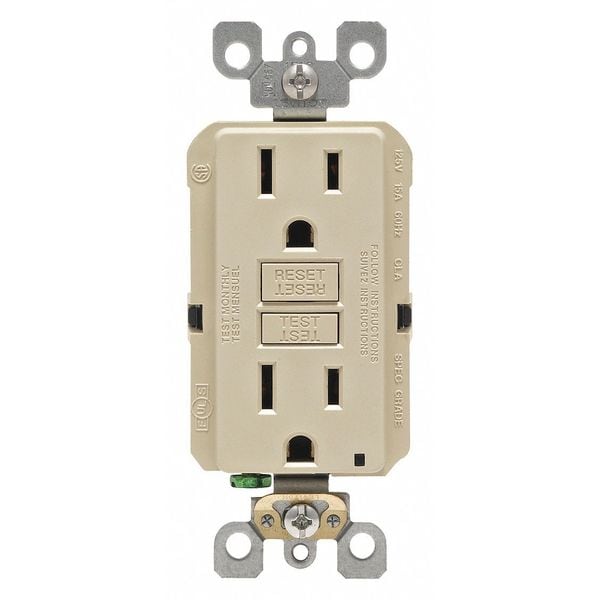

GFI Receptacle


product price: $19.69
/ea
Sold in multiples of 10 for $196.90

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • NEMA Receptacle Configuration - Plugs and Receptacles 5-15R
  • Weather Resistant - Plugs and Receptacles No
  • Amps - Plugs and Receptacles 15 A
  • HP 1 hp
  • Color - Plugs and Receptacles Ivory
See all product information

Product Information

Dimensions

Maximum Wire Size 10 AWG
Minimum Wire Size 14 AWG

Details

NEMA Receptacle Configuration - Plugs and Receptacles 5-15R
Weather Resistant - Plugs and Receptacles No
Amps - Plugs and Receptacles 15 A
HP 1 hp
Color - Plugs and Receptacles Ivory
Wiring Method Back, Side
Voltage - Plugs and Receptacles 125V
Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
Power Indicator Yes
Number of Wires 3
NEMA Configuration 5-15
Item - Plugs and Receptacles GFCI Receptacle
Tamper Resistant No
Self-Testing Yes
Number of Poles 2
Outlet Type - Plugs and Receptacles Standard Duplex
Wiring Method - Plugs and Receptacles Back and Side
Application Environment Commercial
Surge Suppression Yes
Item GFI Receptacle
Mounting Type - Plugs and Receptacles Flush
Special Features Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Primary Resistance Properties 15 A
Voltage Rating 125V AC
Self Testing Yes
Horsepower Rating 1 hp
Wire Connection Types Screw Terminals
Cover Type No Cover
Phase Single
NEMA Receptacle Configuration 5-15R
Mount Type Flush
Grounding Grounded
Additional Electrical Protection GFCI, Surge Protection
Minimum Operating Temperature -31 Degrees F
Housing Color Ivory
Wire Connection Type Screw Terminals
Receptacle Type Decorator Duplex
Contact Material Brass
Number of Outlets 2
Key Resistance Properties Standard Resistance
GFCI Yes
Market Commercial
Number of Poles & Wires 2 Pole / 3 Wire
Grade Federal Specification
Surge Protection No
Housing Material Polycarbonate
Includes Faceplate, Nylon Wallplate
Hub Type Feed Through
Visual Indicator Lights Power Connected
Maximum Operating Temperature 150.8 Degrees F
Polarized Yes
Current Rating 15 A

Description

GFI Receptacle, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Standards CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380
