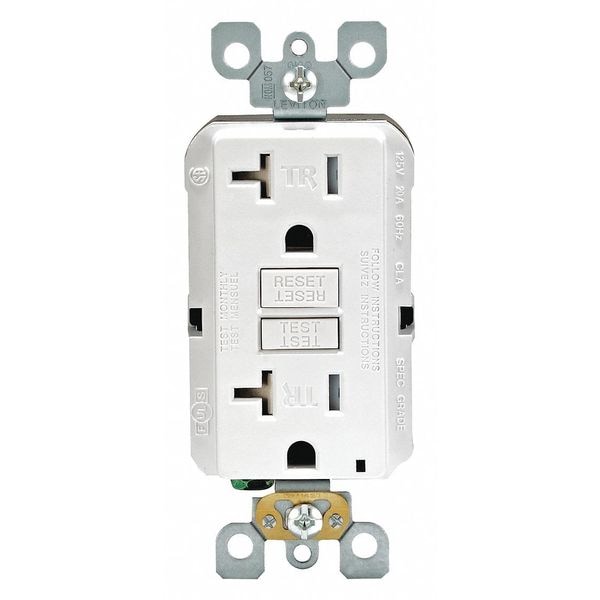

Leviton GFI Receptacle GFTR2-W - main

GFI Receptacle

  • Mfr # GFTR2-W

  • Zoro # G204392939

product price: $26.79
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-W
Zoro #
G204392939
UPC #
07847749736
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Overall Depth
1 in
Face Plate Height
2.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Reset Type
Automatic
Outlet Type - Plugs and Receptacles
Standard Duplex
Self-Testing
Yes
Voltage - Plugs and Receptacles
125V
HP
1 hp
Type
Standard Duplex
Color - Plugs and Receptacles
White
Voltage
125 VAC
Tamper Resistant
Yes
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color
White
Wiring Method
Back, Side
Weather Resistant - Plugs and Receptacles
No
Item - Plugs and Receptacles
GFCI Receptacle
Amps - Plugs and Receptacles
20 A
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
Yes
Resistance Properties
Tamper Resistant
Contact Material
Brass
Self Testing
Yes
Receptacle Type
Decorator Duplex
Horsepower Rating
1 hp
Grade
Federal Specification
Includes
Faceplate, Screws, Self Grounding Clip, Wallplate
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-31 Degrees F
UL 94 Flammability Rating
V-2
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Hub Type
Feed Through
Maximum Operating Temperature
150.8 Degrees F
Mount Type
Flush
Visual Indicator Lights
Power Connected
Reverse Service
Yes
Market
Commercial, Residential
Surge Protection
No
Yoke
Zinc-Plated Steel
Short Circuit Current Rating
10KA
Grounding Screw
Plated Steel
Termination
Back & Side
Line Contacts
Brass Triple-Wipe
Trip Level
Class A, 5mA plus or minus 1mA
ANSI
C-73
Flammability
Rated V-2 per UL 94
Wire
3
Amperage
20 A
Pole
2
Wallplate
Included
CSA-C22.2 No. 144.1-06
File LR-57811
UL498
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
At Rated Voltage
1 HP
Strap Material
Galvanized Steel
Operating Temperature
-35C to +66C
Terminal Screws
Plated Steel
UL 943
File E48380
NEMA
5-20R
Torque Range
14-18 in.-lbs
Terminal Accom.
14-10 AWG
Clamps
Brass
Body Material
Polycarbonate
Fed Spec WC-596
Yes
CSA C22.2 No. 42
Yes
Feature
Self-Test
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
Thermoplastic

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
