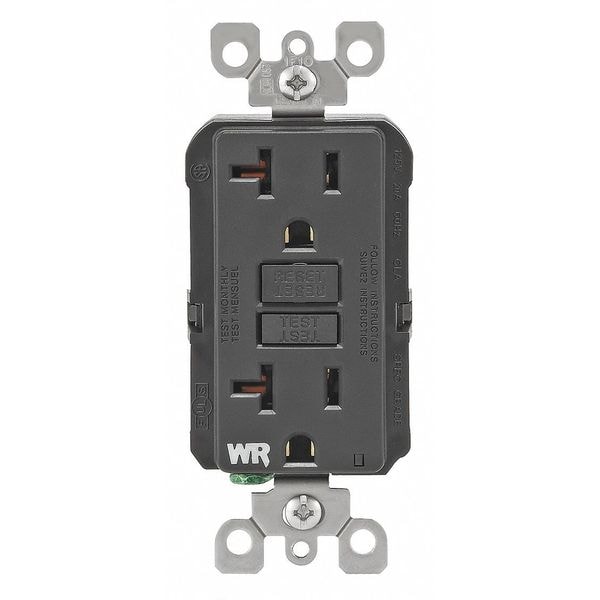

Leviton GFI Receptacle GFWR2-E - main

GFI Receptacle

  • Mfr # GFWR2-E

  • Zoro # G304392884

product price: $34.25
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWR2-E
Zoro #
G304392884
UPC #
07847770911
Country of Origin
China

Dimensions

Overall Depth
1 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Item - Plugs and Receptacles
GFCI Receptacle
Type
GFCI
Weather Resistant
Yes
Self-Testing
Yes
Color - Plugs and Receptacles
Black
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Commercial
Voltage
125 VAC
Color
Black
Wiring Method
Back, Side
Voltage - Plugs and Receptacles
125V
HP
1 hp
Surge Suppression
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Amps - Plugs and Receptacles
20 A
Power Indicator
Yes
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Reset Type
Automatic
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-31 Degrees F
Reverse Service
Yes
Includes Mounting Hardware
Yes
Maximum Operating Temperature
150.8 Degrees F
Horsepower Rating
1 hp
Grade
Federal Specification
Contact Material
Brass
Surge Protection
No
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
For Location
Outdoor
Mount Type
Flush
Hub Type
Feed Through
Market
Commercial, Residential
Self Testing
Yes
Resistance Properties
Impact Resistant, Weather Resistant
Receptacle Type
Decorator Duplex
Feature
Self-Test
Body Material
Polycarbonate
Operating Temperature
-35C to +66C
ANSI
C-73
Fed Spec WC-596
Yes
Wire
3
Trip Level
Class A, 5mA plus or minus 1mA
Grounding Screw
Stainless Steel
Pole
2
Strap Material
Stainless Steel
Clamps
Brass
Termination
Back & Side
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
Polypropylene
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
At Rated Voltage
1 HP
UL498
Yes
Terminal Screws
Stainless Steel
Amperage
20 A
Terminal Accom.
14-10 AWG
CSA-C22.2 No. 144.1-06
File LR-57811
Line Contacts
Brass Triple-Wipe .031 Thick
CSA C22.2 No. 42
Yes
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating
10KA
Standards and Certifications
UL/CSA, NEMA WD6
NEMA
5-20R
Yoke
Stainless Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Weather Resistant
