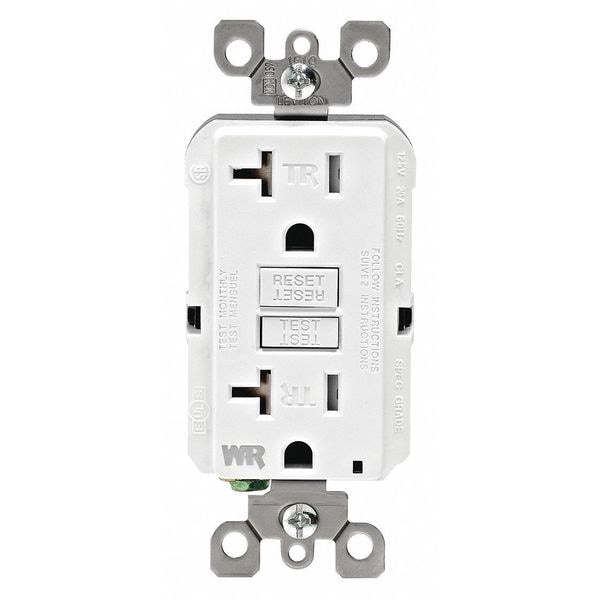

Leviton GFI Receptacle GFWT2-W - main

GFI Receptacle

  • Mfr # GFWT2-W

  • Zoro # G004392917

product price: $25.69
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT2-W
Zoro #
G004392917
UPC #
07847770919
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
White
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Item - Plugs and Receptacles
GFCI Receptacle
HP
1 hp
Color - Plugs and Receptacles
White
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Application Environment
Commercial
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Power Indicator
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Wiring Method
Back, Side
Voltage
125 VAC
Tamper Resistant
Yes
Voltage - Plugs and Receptacles
125V
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color
White
Type
GFCI
Weather Resistant - Plugs and Receptacles
Yes
Self-Testing
Yes
Amps - Plugs and Receptacles
20 A
Weather Resistant
Yes
Reset Type
Automatic
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Receptacle Type
Decorator Duplex
Mount Type
Flush
Grade
Federal Specification
Surge Protection
Yes
Market
Commercial, Residential
Contact Material
Brass
Horsepower Rating
1 hp
For Location
Outdoor
Minimum Operating Temperature
-31 Degrees F
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
Reverse Service
Yes
Wire Connection Type
Screw Terminals
Hub Type
Feed Through
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Self Testing
Yes
At Rated Voltage
1 HP
Short Circuit Current Rating
10KA
Termination
Back & Side
Body Material
Polycarbonate
Fed Spec WC-596
Yes
Face Material
Polypropylene
Terminal Accom.
14-10 AWG
UL498
Yes
Grounding Screw
Stainless Steel
Strap Material
Stainless Steel
Amperage
20 A
CSA-C22.2 No. 144.1-06
File LR-57811
Operating Temperature
-35C to +66C
Line Contacts
Brass Triple-Wipe .031 Thick
Yoke
Stainless Steel
Terminal Screws
Stainless Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature
Self-Test
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Trip Level
Class A, 5mA plus or minus 1mA
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Pole
2
Wire
3
UL 943
File E48380
NEMA
5-20R
ANSI
C-73
Clamps
Brass
CSA C22.2 No. 42
Yes
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Tamper Resistant, Weather Resistant
